Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
To prevent moisture-related issues, store the AIRD-03-222K in a dry, sealed package or bag with desiccant. During assembly, ensure the PCB is clean and dry, and use a nitrogen-filled reflow oven to minimize moisture exposure.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Abracon recommends derating the component's performance at temperatures above 70°C to ensure long-term reliability.
Yes, the AIRD-03-222K is designed to withstand vibrations up to 10g peak acceleration. However, it's essential to ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method.
To troubleshoot frequency stability issues, check the component's power supply voltage, ensure proper PCB layout and grounding, and verify that the load capacitance is within the recommended range. If issues persist, consult Abracon's application notes or contact their technical support team.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIRD-03-222K Overview

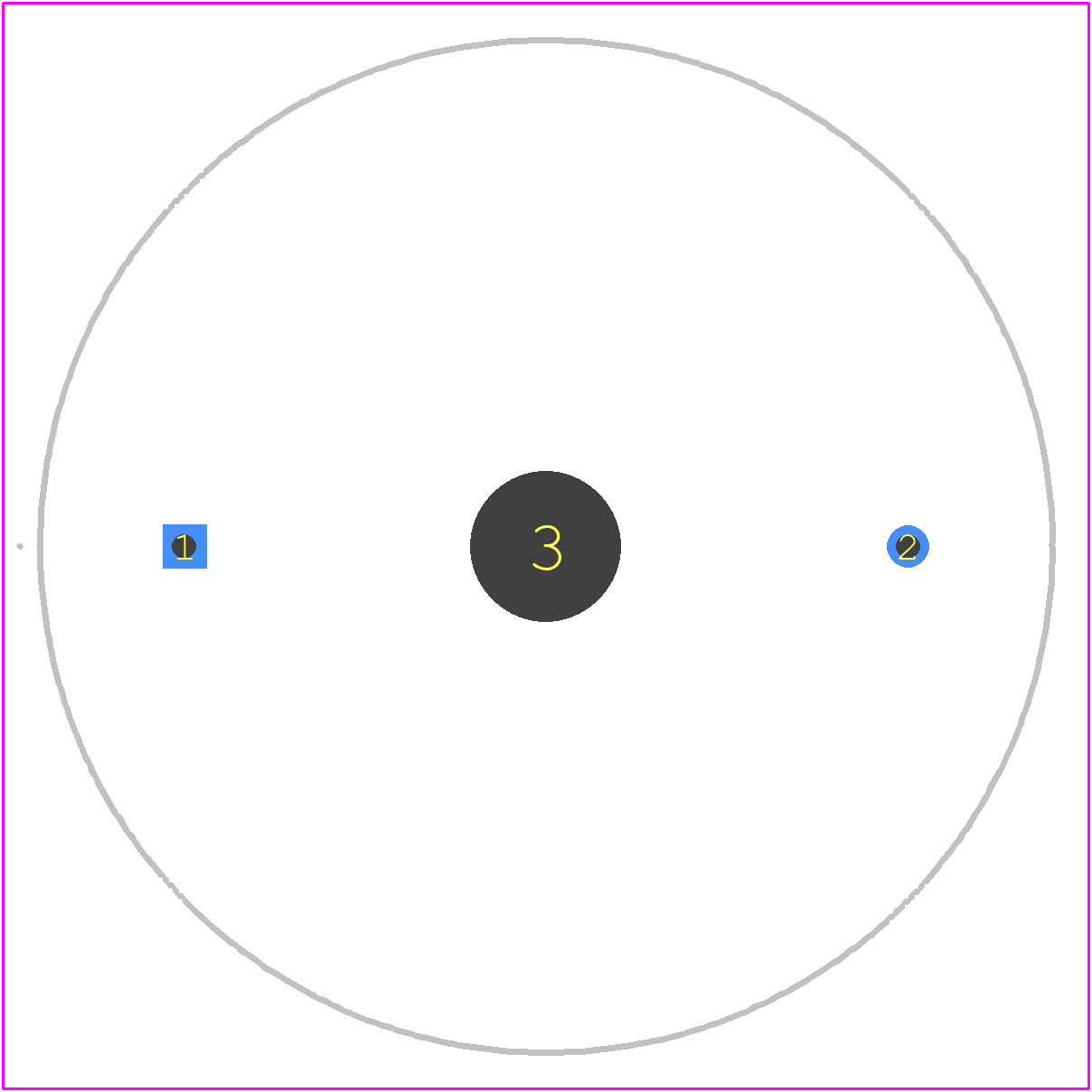

Use the download button to access the AIRD-03-222K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-,
or try a keyword search, such as Fixed Inductors
