AIRD-03-331K footprint, schematic symbol and 3D model by ABRACON

Symbol

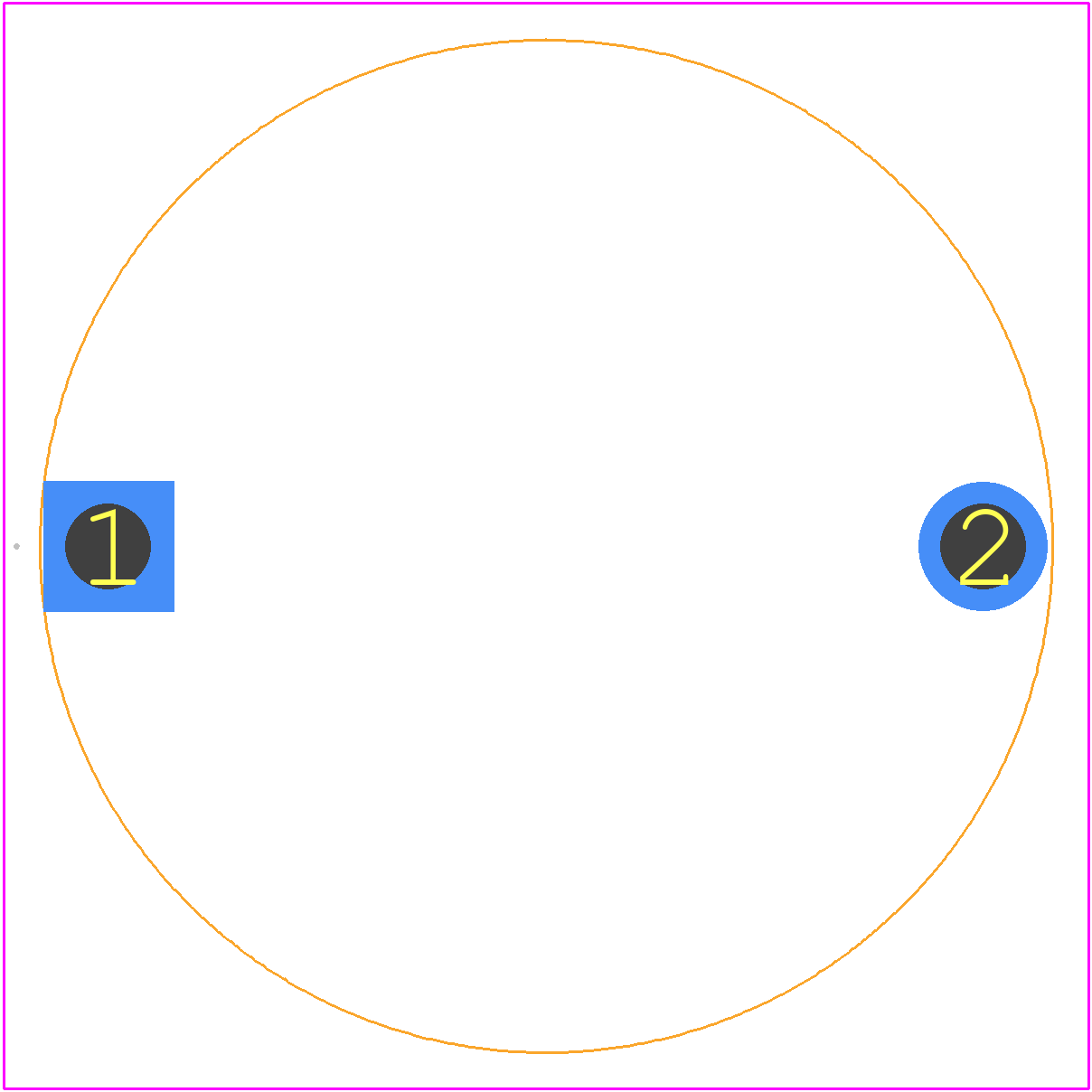

PCB Footprints

3D Models

AIRD-03-331K Details

Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
While the AIRD-03-331K is rated for operation up to 125°C, it's essential to consider the specific application's temperature profile and potential thermal stresses. Abracon recommends consulting with their application engineers for high-temperature applications exceeding 100°C.
The AIRD-03-331K is designed to withstand moderate vibration and shock per the IEC 60068-2-6 and IEC 60068-2-27 standards. However, it's crucial to evaluate the specific application's vibration and shock requirements and consider additional mechanical support or damping if necessary.
Yes, the AIRD-03-331K is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. Abracon recommends following the recommended soldering profile and process guidelines to ensure reliable assembly.
The typical tolerance for the inductance value of the AIRD-03-331K is ±10%. Abracon recommends consulting the specific datasheet or contacting their application engineers for more information on inductance tolerance and binning options.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AIRD-03-331K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
