AIRD-06-101K footprint, schematic symbol and 3D model by ABRACON

Symbol

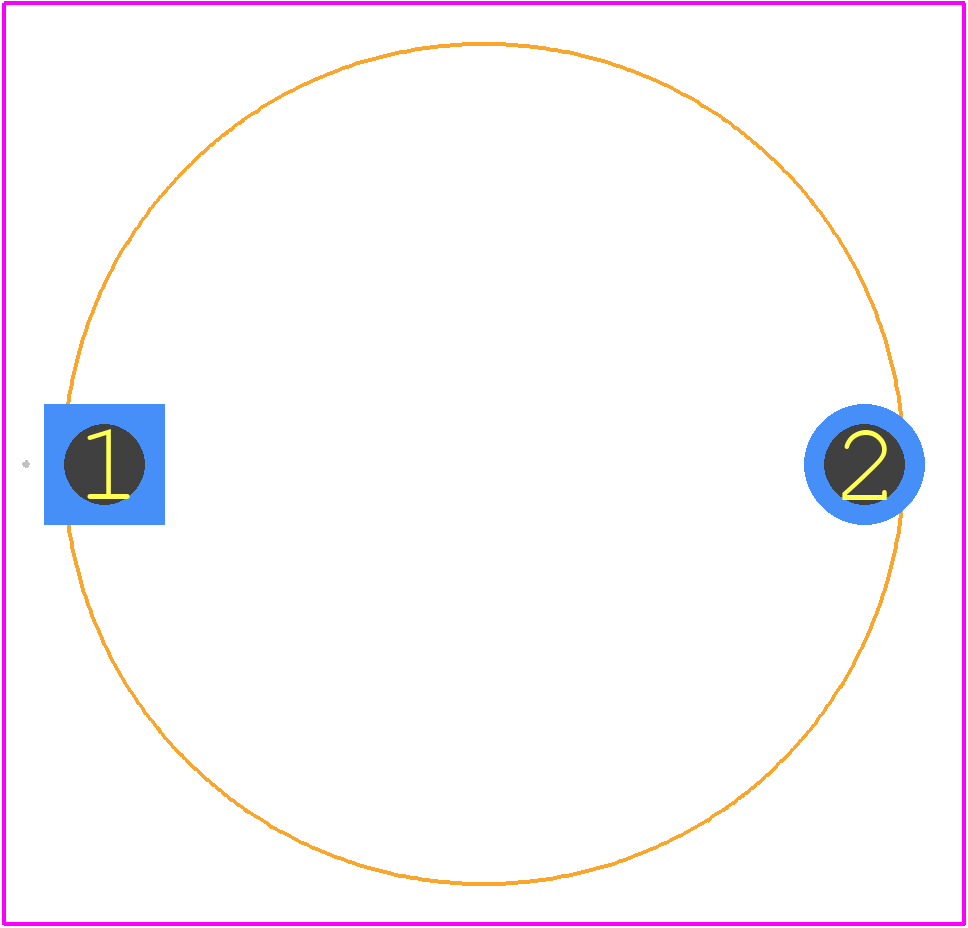

PCB Footprints

3D Models

AIRD-06-101K Details

Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
Yes, the AIRD-06-101K is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable performance in high-temperature environments.
Abracon recommends using a reflow soldering process with a peak temperature of 260°C and a dwell time of 30-60 seconds. It's also essential to follow the recommended soldering profile and use a solder paste with a melting point above 217°C.
The lead time for the AIRD-06-101K can vary depending on the quantity and availability. Typically, it ranges from 4-12 weeks, but it's best to check with Abracon or an authorized distributor for the most up-to-date information.
Yes, the AIRD-06-101K is compatible with lead-free soldering processes, and Abracon recommends using a lead-free solder paste with a melting point above 217°C.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AIRD-06-101K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
