AIRD-06-152K Frequently Asked Questions (FAQs)

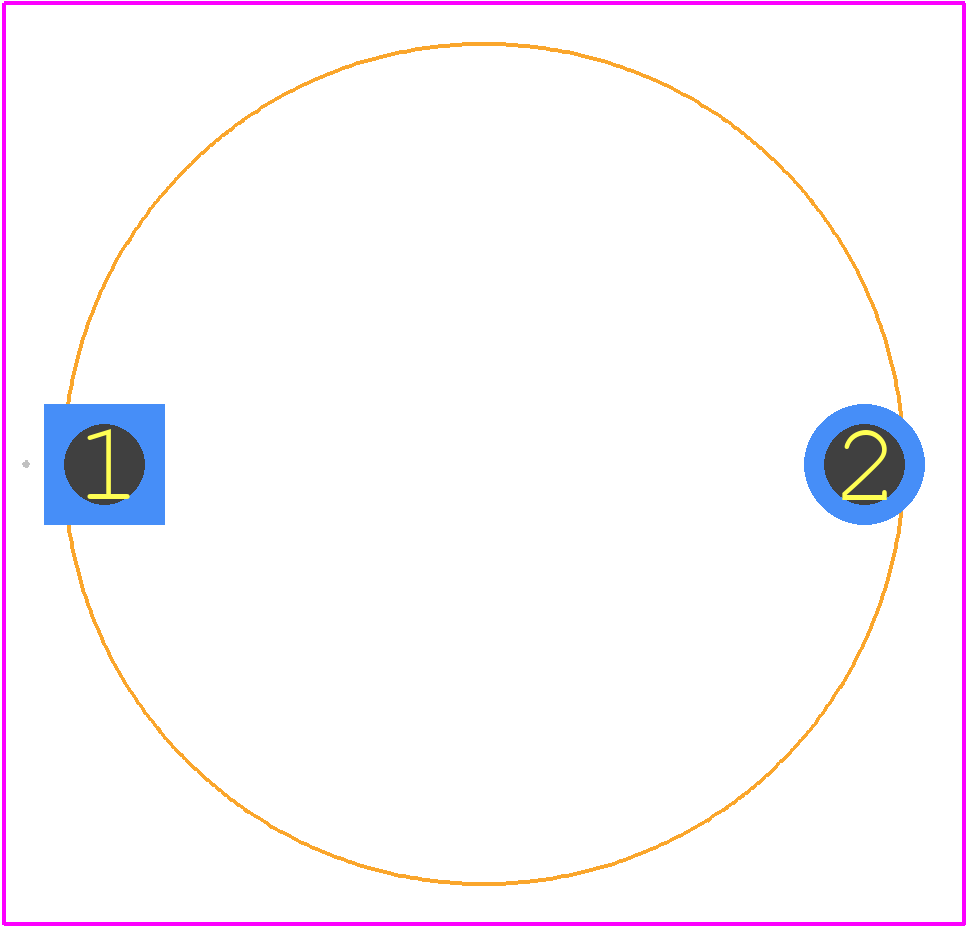

• What is the recommended PCB land pattern for the AIRD-06-152K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-06-152K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on a flat, even surface to prevent warping or damage.
• What is the maximum operating temperature range for the AIRD-06-152K?
  The AIRD-06-152K is rated for operation from -40°C to +85°C (-40°F to +185°F), but it's essential to note that the device's performance may degrade at extreme temperatures.
• Can I use the AIRD-06-152K in a high-vibration environment?
  While the AIRD-06-152K is designed to be robust, it's still a ceramic resonator and may be susceptible to vibration-induced frequency shifts or damage. Abracon recommends evaluating the device's performance in the specific vibration environment to ensure reliability.
• How do I troubleshoot issues with the AIRD-06-152K?
  Common issues with the AIRD-06-152K include frequency drift, low amplitude, or no oscillation. To troubleshoot, check the PCB layout, ensure proper soldering, and verify the oscillator circuit design. If issues persist, contact Abracon's technical support for further assistance.
