AIRD-06-181K footprint, schematic symbol and 3D model by ABRACON

Symbol

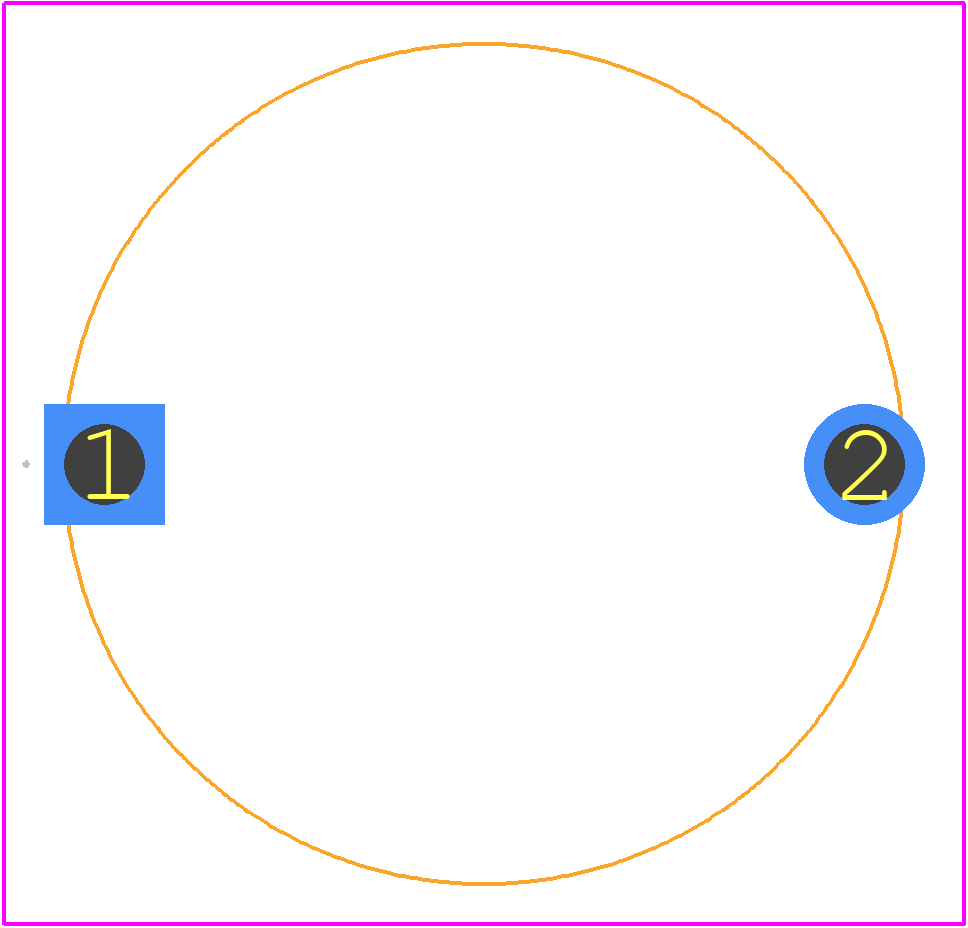

PCB Footprints

3D Models

AIRD-06-181K Details

Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
While the AIRD-06-181K is rated for operation up to 125°C, it's essential to consider the specific application's temperature profile and potential thermal stresses. Abracon recommends consulting with their application engineers for high-temperature applications exceeding 100°C.
The AIRD-06-181K is designed to withstand moderate levels of vibration and shock. However, it's crucial to consider the specific application's environmental conditions and potential mechanical stresses. Abracon recommends following the recommended mounting and handling procedures to ensure the device's reliability.
Yes, the AIRD-06-181K is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
The typical tolerance for the AIRD-06-181K's inductance value is ±10%. However, Abracon can provide custom inductance values with tighter tolerances upon request.

Manufacturer Approved

Machine Generated

System Verified

Community Approved

Use the download button to access the AIRD-06-181K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
