AIRD-06-222K Frequently Asked Questions (FAQs)

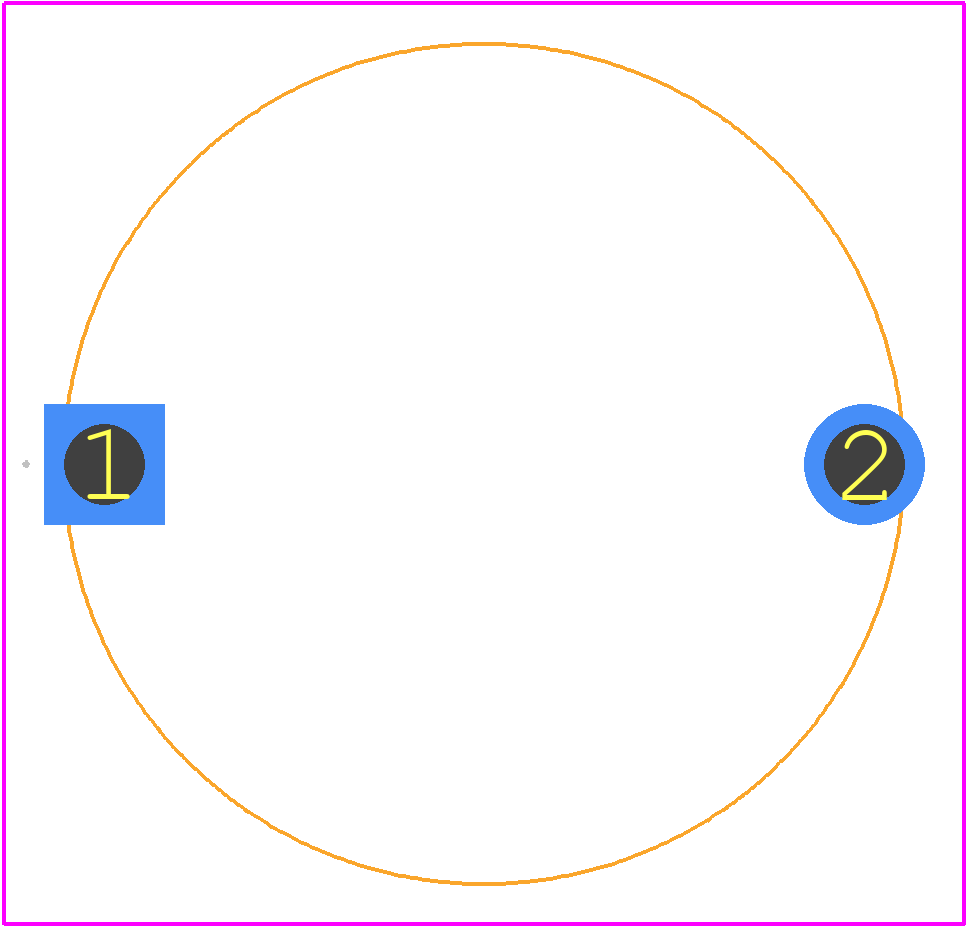

• What is the recommended PCB land pattern for the AIRD-06-222K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-06-222K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow profile with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds above 220°C (428°F). Additionally, ensure the component is properly centered on the PCB and that the solder paste is evenly distributed.
• What is the maximum operating temperature range for the AIRD-06-222K?
  The AIRD-06-222K is rated for operation from -40°C to +125°C (-40°F to +257°F), but it's essential to note that the device's performance and accuracy may degrade at extreme temperatures.
• Can I use the AIRD-06-222K in a high-vibration environment?
  While the AIRD-06-222K is designed to be robust, it's still a ceramic resonator and may be susceptible to vibration-induced frequency shifts or damage. Abracon recommends evaluating the device's performance in your specific application and considering additional mechanical support or damping if necessary.
• How do I troubleshoot issues with the AIRD-06-222K, such as frequency drift or instability?
  To troubleshoot issues, start by verifying the PCB layout and soldering quality. Check for any signs of mechanical stress, contamination, or damage. Ensure the device is properly decoupled and that the surrounding components are not interfering with its operation. If issues persist, consult Abracon's application notes and technical support resources.
