AIRD-06-561K - ABRACON

AIRD-06-561K Frequently Asked Questions (FAQs)

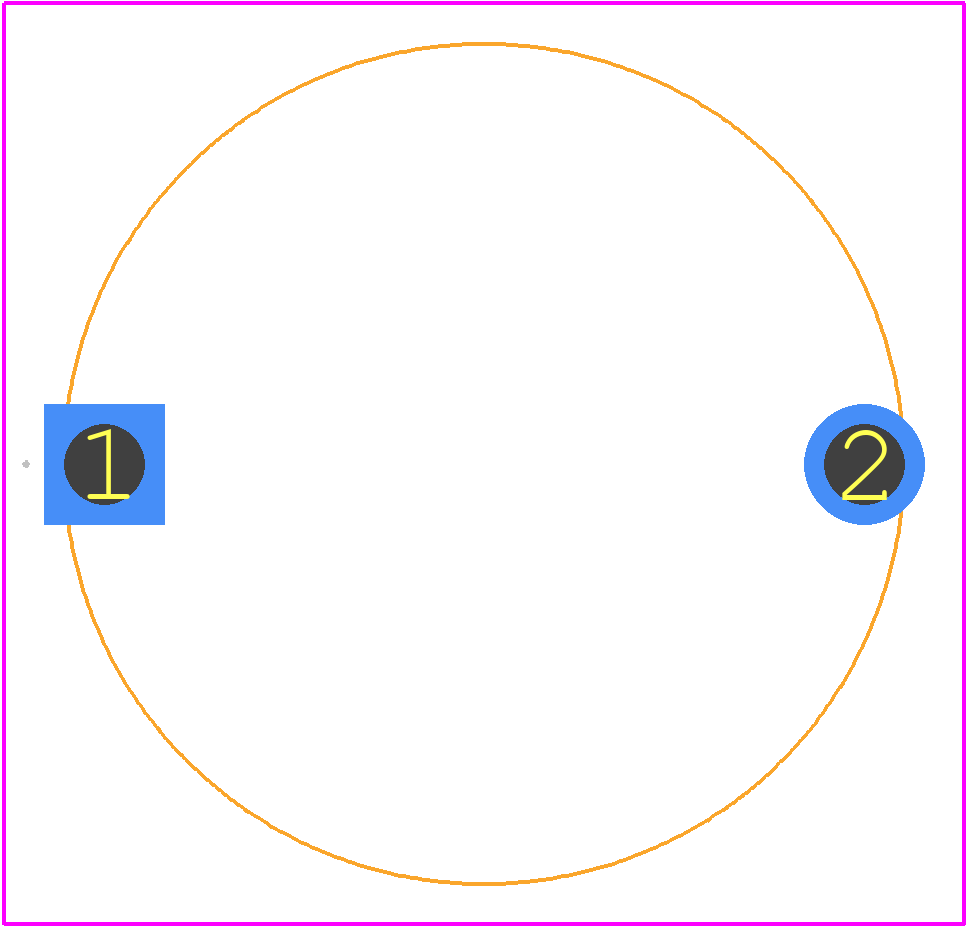

• What is the recommended PCB land pattern for the AIRD-06-561K?
  Abracon recommends following the IPC-7351B standard for the PCB land pattern, with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape.
• How do I ensure proper thermal management for the AIRD-06-561K?
  To ensure proper thermal management, Abracon recommends using a thermal pad or thermal via under the device, and keeping the surrounding PCB area clear of components to allow for good airflow. A thermal interface material (TIM) can also be used to improve heat transfer.
• What is the maximum operating temperature range for the AIRD-06-561K?
  The AIRD-06-561K has an operating temperature range of -40°C to +85°C, but it's recommended to derate the frequency and power handling at higher temperatures to ensure reliable operation.
• Can I use the AIRD-06-561K in a high-vibration environment?
  Yes, the AIRD-06-561K is designed to withstand high-vibration environments, but it's recommended to follow Abracon's guidelines for vibration testing and to ensure proper PCB mounting and soldering to prevent mechanical stress on the device.
• How do I handle ESD protection for the AIRD-06-561K?
  Abracon recommends following standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. The AIRD-06-561K has an ESD rating of 2kV human body model (HBM) and 100V machine model (MM).
