AIS1120SXTR - STMicroelectronics

Description: Accelerometers MEMS acceleration sensor: single-axis for central airbag applications

Download AIS1120SXTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

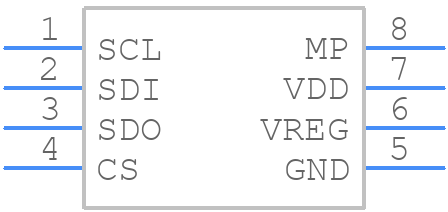

AIS1120SXTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
AIS1120SXTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8
click to zoom
3D Models
AIS1120SXTR - STMicroelectronics - 3D model - Small Outline Packages - SOIC8
click to zoom

AIS1120SXTR Details

  • Manufacturer Part Number:

    AIS1120SXTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Additional Feature:

    SEATED HGT MIN

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.25 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.60-2.70V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.47 V

  • Supply Voltage-Min:

    3.13 V

  • Surface Mount:

    YES

  • Technology:

    BCD

AIS1120SXTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The AIS1120SXTR requires a one-time calibration process to set the sensitivity and offset of the accelerometer. This can be done using the STMicroelectronics-provided calibration software or by following the calibration procedure outlined in the application note AN2861.
  • The AIS1120SXTR is rated for operation from -40°C to 125°C, but the accuracy and stability of the accelerometer may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related performance characteristics.
  • The AIS1120SXTR is not certified for use in safety-critical applications, such as automotive airbag systems or medical devices. However, it can be used in non-safety-critical applications, such as consumer electronics or industrial automation. For safety-critical applications, consider using a certified accelerometer, such as the AIS2DW12 or AIS3DWX.
  • The AIS1120SXTR has a digital SPI interface that can be connected to a microcontroller. STMicroelectronics provides example code and application notes for popular microcontrollers, such as the STM32, to help with integration and data processing.
