AIS1200PSTR - STMicroelectronics

Description: MEMS peripheral acceleration sensor, single-axis with PSI5 point-to-point interface, AEC-Q100 qualified

Download AIS1200PSTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

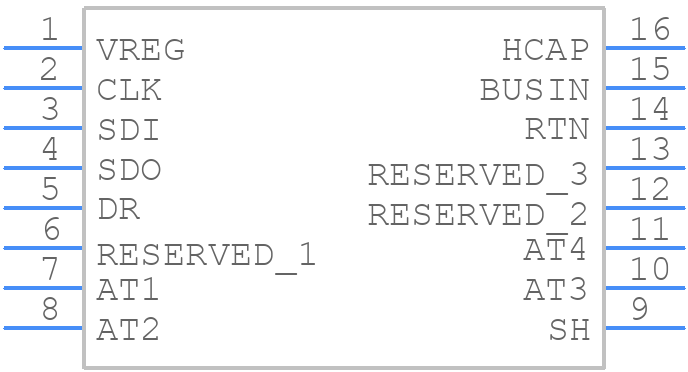

Symbol
AIS1200PSTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
AIS1200PSTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - AIS1200PSTR
click to zoom
3D Models
AIS1200PSTR - STMicroelectronics - 3D model - Small Outline Packages - AIS1200PSTR
click to zoom

AIS1200PSTR Details

  • Manufacturer Part Number:

    AIS1200PSTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Additional Feature:

    SEATED HGT CALCULATED

  • Body Breadth:

    3.94 mm

  • Body Height:

    1.48 mm

  • Body Length or Diameter:

    9.93 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    16 V

  • Supply Voltage-Min:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCD

AIS1200PSTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the AIS1200PSTR application note (AN5323) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The AIS1200PSTR can be configured for different sensor types and orientations using the SPI interface. The device has several registers that can be programmed to set the sensor type, orientation, and other parameters. Refer to the AIS1200PSTR datasheet and application note for more information on register settings and configuration.
  • The AIS1200PSTR can measure accelerations up to ±1200g, making it suitable for high-shock and high-vibration applications.
  • The AIS1200PSTR has an internal temperature sensor and compensation circuitry that allows it to compensate for temperature effects on the sensor output. Additionally, the device can be calibrated using the SPI interface to adjust for any offset or gain errors.
  • The power consumption of the AIS1200PSTR is typically around 1.5mA in normal operation. Power consumption can be reduced by using the device's low-power mode, which can be enabled through the SPI interface. Additionally, the device can be put into sleep mode to further reduce power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AIS1200PSTR Overview

Use the download button to access the AIS1200PSTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIS12, or try a keyword search, such as Other Sensors/Transducers
