AJW7512 - Panasonic

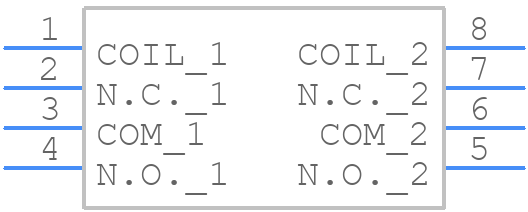

AJW7512 Details

• Manufacturer Part Number:

  AJW7512

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  5

• Additional Feature:

  STANDARD: IEC 61810-1, SOCKET MOUNTABLE

• Body Breadth:

  12.8 mm

• Body Height:

  20 mm

• Body Length or Diameter:

  28.6 mm

• Coil Current(DC)-Max:

  0.022 A

• Coil Operate Voltage(DC):

  16.8 V

• Coil Power:

  530 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  1100 Ω

• Coil Voltage(DC)-Max:

  31.2 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  1250VA@250VAC

• Contact (AC) Max Rating R Load:

  5A@250VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Power Rating R Load:

  150W@30VDC

• Contact (DC) Max Rating R Load:

  5A@30VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• End Contact Material:

  SILVER NICKEL

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

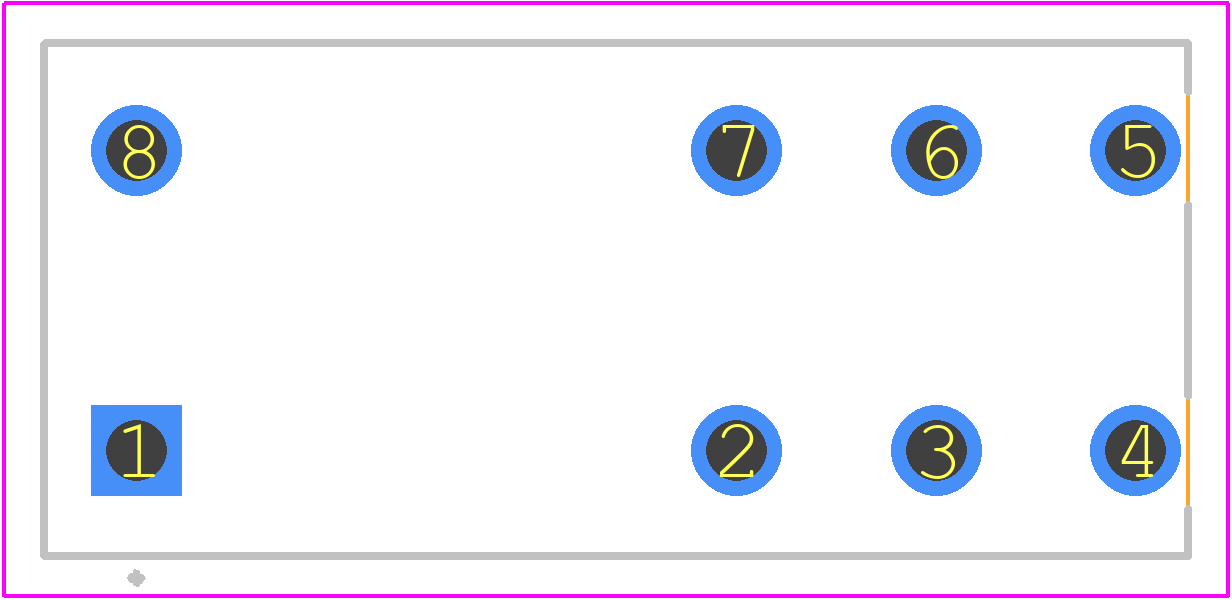

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  15 ms

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  28.6mm x 12.8mm x 20mm

• Reference Standard:

  CSA; IEC; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  5 ms

• Sealing:

  RT2; RT3

• Surface Mount:

  NO

• Terminal Length:

  0.003606807213614427 inch

• Termination Type:

  SOLDER
