AK4432VT - Asahi Kasei Microdevices

Description: IC DAC 32BIT 192KHZ 2CH 16TSSOP

Download AK4432VT Model
Schematic

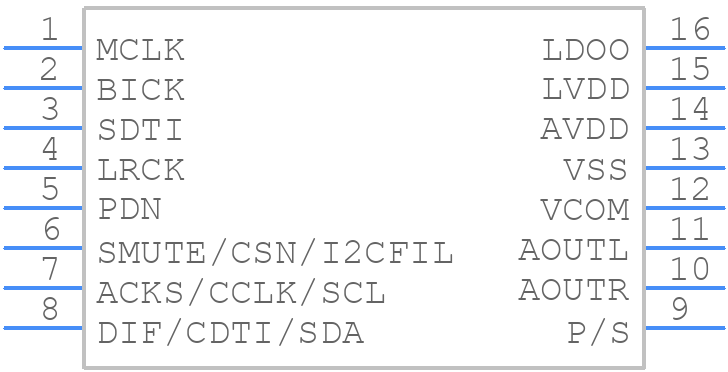

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AK4432VT - Asahi Kasei Microdevices PCB footprint - Small Outline Packages - Small Outline Packages - 16pin TSSOP_3
click to zoom
3D Models
AK4432VT - Asahi Kasei Microdevices  - 3D model - Small Outline Packages - 16pin TSSOP_3
click to zoom

AK4432VT Details

  • Manufacturer Part Number:

    AK4432VT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Asahi Kasei Microsystems Corporation

  • YTEOL:

    7

  • Analog Output Voltage-Max:

    3.11 V

  • Analog Output Voltage-Min:

    2.55 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL, PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

AK4432VT Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures proper internal voltage regulation and prevents damage to the device.
  • To optimize analog performance, ensure that the analog power supply (AVCC) is decoupled from the digital power supply (DVCC) using separate power planes and decoupling capacitors. Additionally, use a low-ESR capacitor for the analog power supply decoupling.
  • The maximum allowed capacitance for the analog input pins is 10nF. Exceeding this value may affect the device's analog performance and stability.
  • During power-down, the digital output pins should be tri-stated to prevent back-powering the device. This can be achieved by setting the output pins to high-impedance state or using a pull-down resistor.
  • Keep analog and digital signals separate on the PCB, using separate layers or routing channels. Avoid crossing analog and digital signals, and use shielding or guard rings to minimize noise and crosstalk.
