AK7451 - Asahi Kasei Microdevices

Description: Zero Latency Angle Sensor IC

Download AK7451 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

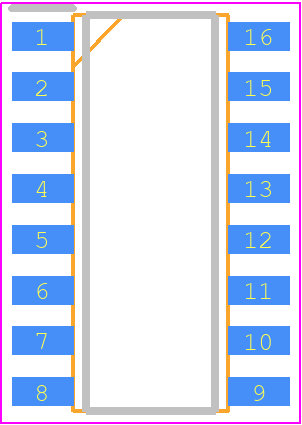

PCB Footprints
AK7451 - Asahi Kasei Microdevices PCB footprint - Small Outline Packages - Small Outline Packages - 16sop
click to zoom
3D Models
AK7451 - Asahi Kasei Microdevices  - 3D model - Small Outline Packages - 16sop
click to zoom

AK7451 Details

  • Manufacturer Part Number:

    AK7451

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Asahi Kasei Microsystems Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AK7451 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is stable before the digital circuitry is powered on.
  • To optimize the AK7451's performance for low-noise applications, use a low-noise power supply, minimize the number of external components, and use a well-designed PCB layout with proper grounding and shielding. Additionally, consider using a noise filter or a low-pass filter to reduce high-frequency noise.
  • The AK7451 can support clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The AK7451's gain settings can be configured through the SPI interface. The gain settings should be adjusted based on the specific application requirements and the input signal amplitude. A higher gain setting may be required for low-amplitude input signals, while a lower gain setting may be required for high-amplitude input signals.
  • The AK7451's latency is typically around 1-2 clock cycles, depending on the specific configuration and operating mode. This latency may affect applications that require real-time processing or have strict timing requirements. Engineers should consider the latency when designing their application and ensure that it meets the required timing specifications.
