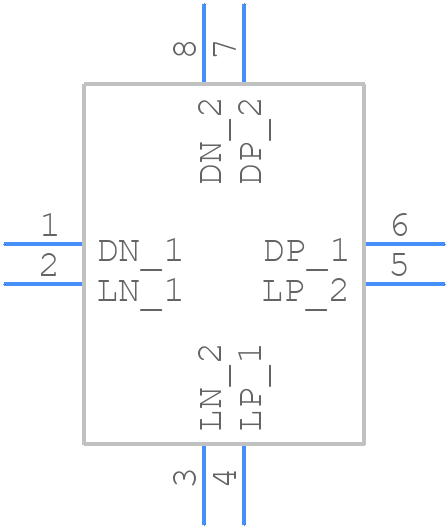

AK9700AE - Asahi Kasei Microdevices

AK9700AE Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AK9700AE?
  The recommended power-up sequence is to first apply VDD (1.8V) and then VDDA (1.8V) and VDDD (3.3V) simultaneously. This ensures proper initialization of the device.
• How do I optimize the AK9700AE's performance for low-power consumption?
  To optimize for low-power consumption, set the clock frequency to the lowest required value, use the power-down mode when not in use, and adjust the voltage regulator settings to minimize power consumption.
• What is the maximum clock frequency supported by the AK9700AE?
  The maximum clock frequency supported by the AK9700AE is 192 kHz, but it can be adjusted to lower frequencies depending on the application requirements.
• Can I use the AK9700AE with a 5V power supply?
  No, the AK9700AE is not compatible with a 5V power supply. It requires a 1.8V power supply for VDD and VDDA, and a 3.3V power supply for VDDD.
• How do I troubleshoot issues with the AK9700AE's I2C interface?
  To troubleshoot I2C interface issues, check the clock frequency, ensure proper pull-up resistors are used, and verify the slave address and data transmission format.
