AL12A05N0JTR - Kyocera AVX

Description: RF Inductors - SMD 5nH 5% AIR CORE

Download AL12A05N0JTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AL12A05N0JTR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

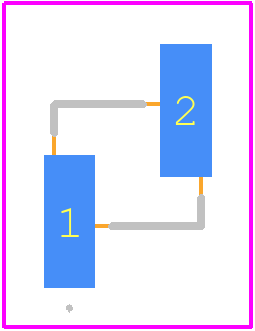

AL12A05N0JTR - Kyocera AVX PCB footprint - Other - Other - AL12A05N0JTR-1
click to zoom
3D Models
AL12A05N0JTR - Kyocera AVX - 3D model - Other - AL12A05N0JTR-1
click to zoom

AL12A05N0JTR Details

  • Manufacturer Part Number:

    AL12A05N0JTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    8.4

  • Case/Size Code:

    1412

  • Construction:

    Wound

  • Core Material:

    AIR

  • DC Resistance:

    0.0018 Ω

  • Inductance-Nom (L):

    0.005 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    3.18 mm

  • Package Length:

    3.68 mm

  • Package Style:

    SMT

  • Package Width:

    3.05 mm

  • Packing Method:

    TR, Embossed Plastic, 7 Inch

  • Quality Factor-Min (at L-nom):

    140

  • Rated Current-Max:

    4 A

  • Self Resonance Frequency:

    6500 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

AL12A05N0JTR Frequently Asked Questions (FAQs)

  • The recommended land pattern for the AL12A05N0JTR capacitor can be found in the Kyocera AVX Components' land pattern recommendation document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
  • While the datasheet provides some information on the capacitor's high-frequency characteristics, engineers may want to know more about its performance in specific high-frequency applications. Kyocera AVX Components may provide additional information on the capacitor's impedance, ESR, and ESL at high frequencies through their application notes or technical support.
  • The AL12A05N0JTR capacitor may not be explicitly listed as automotive- or aerospace-grade, but Kyocera AVX Components may have additional certifications or testing data available to support its use in these applications. Engineers should contact Kyocera AVX Components' customer support to determine the capacitor's suitability for their specific application.
  • The MSL rating is not typically included in the datasheet, but it's an important consideration for engineers designing systems that may be exposed to moisture. Kyocera AVX Components can provide the MSL rating for the AL12A05N0JTR capacitor, which will help engineers determine the necessary handling and storage procedures to prevent moisture-related damage.
  • The AL12A05N0JTR capacitor is a polarized electrolytic capacitor, and using it in reverse polarity applications can lead to reduced performance, damage, or even failure. Engineers should always follow the recommended polarity markings and voltage ratings specified in the datasheet to ensure safe and reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AL12A05N0JTR Overview

Use the download button to access the AL12A05N0JTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL12A, or try a keyword search, such as Fixed Inductors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
