A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the package to connect the thermal pad to the copper area.
Ensure that the device is operated within the recommended operating conditions, including voltage, current, and temperature. Also, follow proper PCB design and layout guidelines to minimize thermal resistance and ensure good heat dissipation.
The AL1673-20CSP-13 has built-in ESD protection diodes on all pins. However, it is still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is operated within the recommended operating conditions and follow proper PCB design guidelines to minimize parasitic thyristor formation.
Yes, the AL1673-20CSP-13 is qualified for automotive and high-reliability applications. However, it is recommended to consult with Diodes Incorporated's application engineers to ensure that the device meets the specific requirements of your application.
The AL1673-20CSP-13 has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours. Storage conditions should be in accordance with IPC/JEDEC J-STD-033, with a maximum temperature of 30°C and relative humidity of 60%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL1673-20CSP-13 Overview

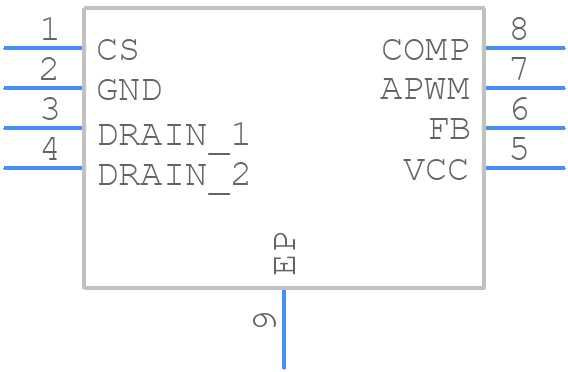

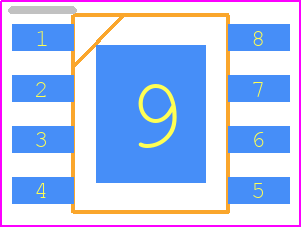

Use the download button to access the AL1673-20CSP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL167,
or try a keyword search, such as Display Drivers
