AL3069T16E-13 - Diodes Incorporated

Description: LED Lighting Drivers LED Backlight Laptop/TV TSSOP-16EP T&R 2.5K

Download AL3069T16E-13 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AL3069T16E-13 model

Email notifications will be applied after download.

Send part feedback

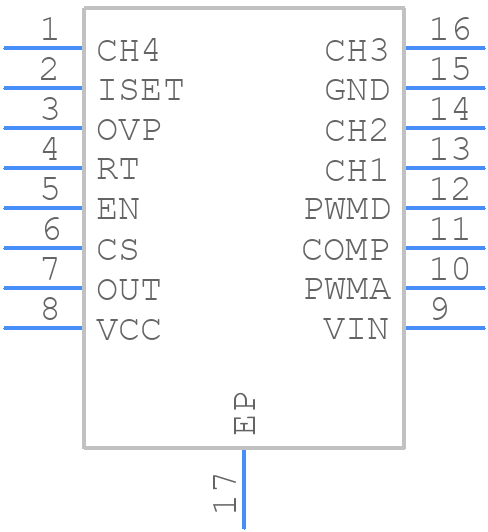

Symbol

AL3069T16E-13 - Diodes Incorporated - PCB symbol

PCB Footprints

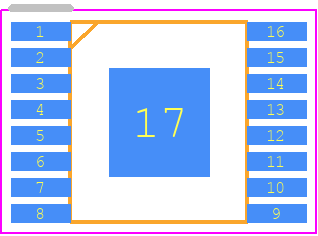

AL3069T16E-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16EP (Type DX)

3D Models

AL3069T16E-13 - Diodes Incorporated - 3D model - Small Outline Packages - TSSOP-16EP (Type DX)

Datasheet Download Datasheet
Stock & Prices Price & Stock for AL3069T16E-13
Part Number AL3069T16E-13
Manufacturer Diodes Incorporated
Pin Count 17
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP-16EP (Type DX)
Released Date Oct 23, 2024
Last Modified Date Oct 23, 2024 10:45 AM UTC
Pinout / Pin List Click Here (Member Only)

AL3069T16E-13 Details

Manufacturer Part Number:
AL3069T16E-13
Manufacturer:
Diodes Incorporated

Trust Checks

Community Provided

System Verified

Community Approved

AL3069T16E-13 Overview

Use the download button to access the AL3069T16E-13 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AL306, or try a keyword search, such as Display Drivers
