AL460A-13-PBF Frequently Asked Questions (FAQs)

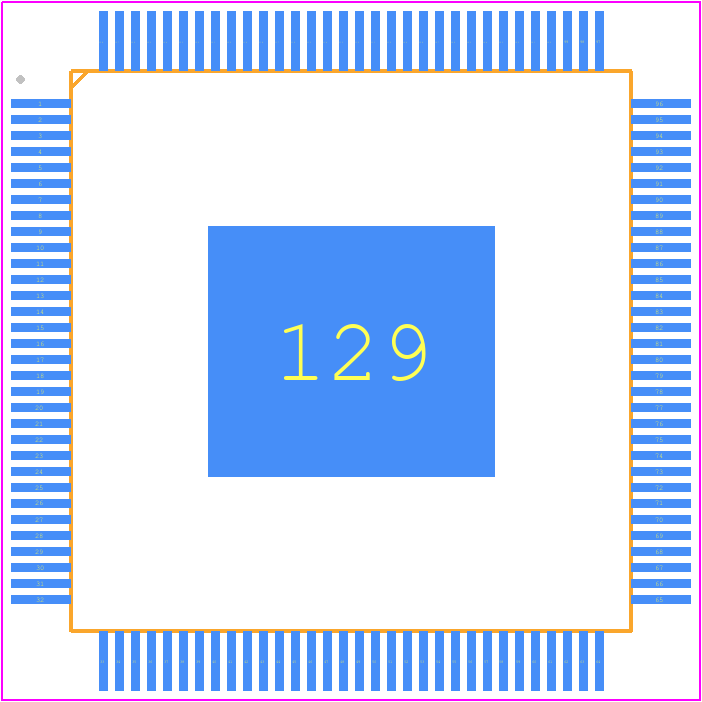

• What is the recommended PCB layout and thermal management for optimal performance?
  Averlogic recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal plane on the PCB.
• How do I ensure signal integrity and minimize noise in my design?
  Use controlled impedance traces, add series termination resistors, and consider using a signal integrity model to simulate and optimize your design. Also, ensure that the power supply is clean and well-regulated.
• What is the maximum operating temperature range for this device?
  The AL460A-13-PBF is rated for industrial temperature range, which is -40°C to 85°C. However, it's recommended to derate the device's performance and power consumption at higher temperatures.
• Can I use this device in a radiation-hardened or high-reliability application?
  The AL460A-13-PBF is not specifically designed or tested for radiation hardness or high-reliability applications. Averlogic recommends consulting with their sales team or application engineers for guidance on using this device in such applications.
• What is the recommended power-up and power-down sequence for this device?
  Averlogic recommends a power-up sequence of VCC followed by VDD, and a power-down sequence of VDD followed by VCC. This ensures that the internal voltage regulators and logic are properly initialized and shut down.
