A good PCB layout for the AL5801W6-7 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure stable output voltage regulation, it's essential to follow the recommended capacitor selection and placement guidelines, maintain a low-ESR output capacitor, and minimize the loop area of the feedback network.
The AL5801W6-7 can tolerate input voltage ripple up to 10% of the nominal input voltage. Exceeding this limit may affect the device's reliability and performance.
While the AL5801W6-7 is rated for operation up to 125°C, it's essential to consider the device's power dissipation, thermal resistance, and PCB thermal design to ensure reliable operation in high-temperature environments.
To troubleshoot output voltage instability or oscillations, check the PCB layout, component selection, and feedback network design. Ensure that the output capacitor is properly selected, and the feedback resistors are correctly sized. Also, verify that the input voltage is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL5801W6-7 Overview

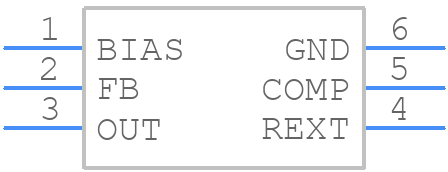

Use the download button to access the AL5801W6-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL580,
or try a keyword search, such as Display Drivers
