AL5812MP-13 - Diodes Incorporated

Description: DiodesZetex AL5812MP-13, LED Driver, 3.5 → 60 V, 8-Pin MSOP

Download AL5812MP-13 Model

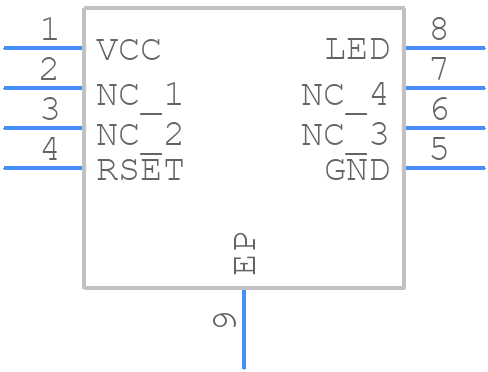

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AL5812MP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8EP-
click to zoom
3D Models
AL5812MP-13 - Diodes Incorporated  - 3D model - Small Outline Packages - MSOP-8EP-
click to zoom

AL5812MP-13 Details

  • Manufacturer Part Number:

    AL5812MP-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    3.5 V

  • Supply Voltage-Nom:

    3.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    2.95 mm

AL5812MP-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat. The copper area should be at least 1 inch x 1 inch in size and connected to a ground plane to ensure good thermal conductivity.
  • The device requires a minimum of 2.5V supply voltage and a maximum of 5.5V. Ensure the input voltage is within this range and the output voltage is set to the desired level using the feedback resistors.
  • The maximum output current capability of the AL5812MP-13 is 1.5A. However, it's recommended to limit the output current to 1A for optimal reliability and thermal performance.
  • Use a voltage supervisor or a voltage monitor IC to detect overvoltage and undervoltage conditions. Add a TVS diode or a zener diode to protect the device from voltage spikes and transients.
  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize noise and ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AL5812MP-13 Overview

Use the download button to access the AL5812MP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL581, or try a keyword search, such as Display Drivers
