A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the IC to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to place them close to the IC. Additionally, a minimum of 1uF ceramic capacitor should be used at the output to filter out noise and ripple.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device for reliable operation above 85°C. Consult the thermal derating curve in the datasheet to determine the maximum ambient temperature for your specific application.
Yes, the AL5814QMP-13 is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the required standards.
To protect the device from overvoltage and overcurrent conditions, consider adding external overvoltage protection (OVP) and overcurrent protection (OCP) circuits. The OVP circuit should be designed to trigger at a voltage above the maximum recommended input voltage, and the OCP circuit should be designed to limit the output current to the recommended maximum value.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL5814QMP-13 Overview

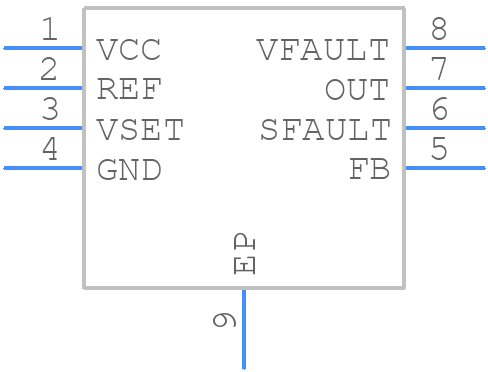

Use the download button to access the AL5814QMP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL581,
or try a keyword search, such as Display Drivers
