A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane, and to place thermal vias under the IC to dissipate heat efficiently. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 125°C) and to provide adequate heat sinking. You can also consider using thermal interface materials (TIMs) to improve heat transfer between the IC and the heat sink.
The AL58263T24E-13 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
While the AL58263T24E-13 is a high-quality device, it's essential to evaluate its suitability for high-reliability or automotive applications. Diodes Incorporated provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP (Production Part Approval Process) support.
The recommended soldering conditions for the AL58263T24E-13 are: peak temperature of 260°C, soldering time of 10 seconds, and a soldering temperature profile that follows the IPC J-STD-020 standard.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL58263T24E-13 Overview

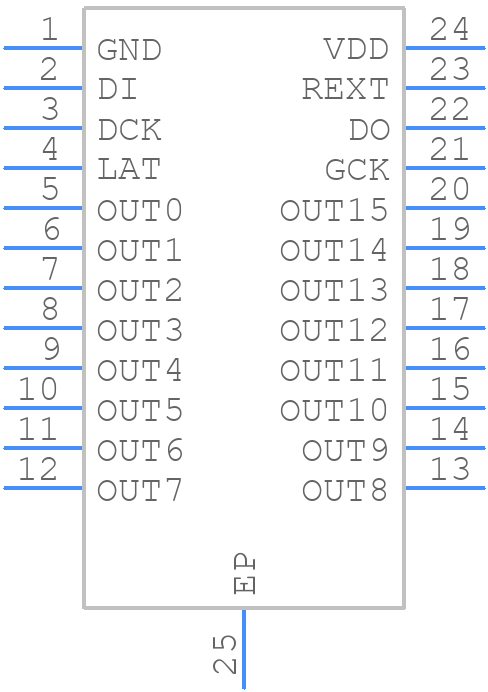

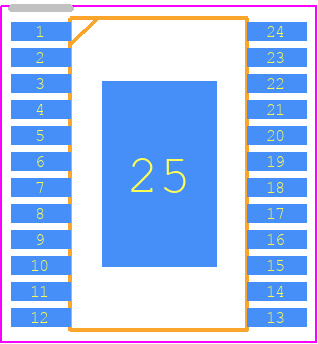

Use the download button to access the AL58263T24E-13 schematic symbol, PCB footprint, and 3D model.
