AL5890-10D-13 - Diodes Incorporated

Description: LED Lighting Drivers 10mA LED Linear Driver, TO252

Download AL5890-10D-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

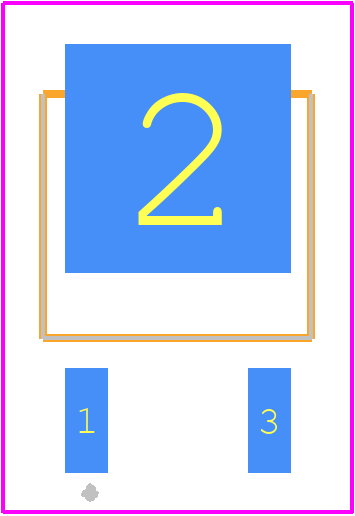

AL5890-10D-13 - Diodes Incorporated PCB footprint - Other - Other - TO252 (Standard)
click to zoom

AL5890-10D-13 Details

  • Manufacturer Part Number:

    AL5890-10D-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TO-252, 3/2 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-05-10

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Length:

    6.58 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SMSIP3H,.38,90TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.52 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    400 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    10 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.286 mm

  • Terminal Position:

    SINGLE

  • Width:

    6.1 mm
