A good PCB layout for the AL8806MP8-13 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
To ensure stable output voltage regulation, ensure the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Also, minimize the distance between the output capacitor and the device, and use a low-impedance output capacitor.
The AL8806MP8-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
While the AL8806MP8-13 is a high-quality device, it's essential to consult with Diodes Incorporated or a qualified representative to determine its suitability for high-reliability or automotive applications, as additional testing and validation may be required.
A 1uF to 10uF ceramic or X5R/X7R dielectric capacitor is recommended for input decoupling. The capacitor should be placed as close to the device as possible, and its voltage rating should be at least 1.5 times the maximum input voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8806MP8-13 Overview

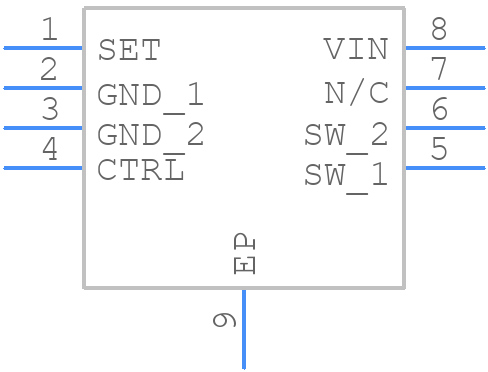

Use the download button to access the AL8806MP8-13 schematic symbol, PCB footprint, and 3D model.
