A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad of the AL8807AW5-7, and to use thermal vias to dissipate heat to the other side of the board. Additionally, keeping the component side of the board clear of other components and using a thermal interface material can help to improve thermal performance.
To ensure the output voltage is stable and regulated, make sure to follow the recommended circuit layout and component selection guidelines in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and that the output capacitor is of sufficient value and type to filter out any ripple or noise.
The maximum ambient temperature for reliable operation of the AL8807AW5-7 is 85°C. However, it's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation and to prevent overheating.
Yes, the AL8807AW5-7 is qualified to the AEC-Q100 standard for automotive applications, and is suitable for use in high-reliability applications. However, it's recommended to consult with Diodes Incorporated's application engineers to ensure the device meets the specific requirements of your application.
The power dissipation of the AL8807AW5-7 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, the thermal resistance of the package and the PCB layout should be taken into account to ensure the device operates within its recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8807AW5-7 Overview

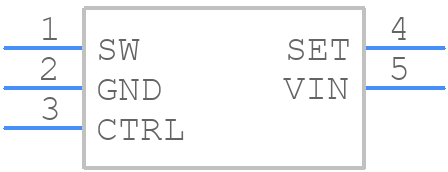

Use the download button to access the AL8807AW5-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL880,
or try a keyword search, such as Display Drivers
