A good PCB layout for the AL8807MP-13 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces to reduce EMI and noise.
To ensure stability, it's essential to choose the correct output capacitor value and type, and to ensure that the capacitor's ESR (Equivalent Series Resistance) is within the recommended range. Additionally, the input voltage should be within the specified range, and the device should be operated within the recommended temperature range.
The AL8807MP-13 can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 6.5V to 16V for optimal performance and reliability.
The AL8807MP-13 is rated for operation up to 125°C, but it's essential to ensure that the device is properly cooled and that the junction temperature is within the specified range to prevent overheating and ensure reliability.
The output current capability of the AL8807MP-13 can be calculated based on the input voltage, output voltage, and the device's efficiency. The datasheet provides a formula to calculate the maximum output current, and it's essential to consider the device's thermal limitations and the PCB's thermal design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8807MP-13 Overview

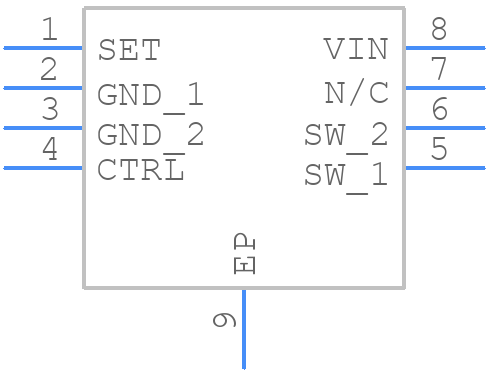

Use the download button to access the AL8807MP-13 schematic symbol, PCB footprint, and 3D model.
