AL8807W5-7 - Diodes Incorporated

Description: DiodesZetex AL8807W5-7, LED Driver, 6 → 36 V, 5-Pin SOT-25

Download AL8807W5-7 Model

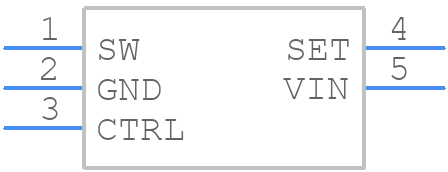

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AL8807W5-7 - Diodes Incorporated PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT25-ren1
click to zoom
3D Models
AL8807W5-7 - Diodes Incorporated  - 3D model - SOT23 (5-Pin) - SOT25-ren1
click to zoom

AL8807W5-7 Details

  • Manufacturer Part Number:

    AL8807W5-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT

  • Package Description:

    ROHS COMPLIANT, SOT-25, 5 PIN

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AL8807W5-7 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area on the top and bottom layers connected to the thermal pad of the AL8807W5-7, and to use thermal vias to dissipate heat. Additionally, keeping the PCB layers as thin as possible and using a thermal interface material can also help to improve thermal performance.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to choose a capacitor with a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the output voltage can be further stabilized by adding a small ceramic capacitor (e.g. 1uF) in parallel with the main output capacitor.
  • The maximum input voltage that can be applied to the AL8807W5-7 is 28V. Exceeding this voltage may cause damage to the device.
  • The power dissipation of the AL8807W5-7 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The maximum power dissipation of the AL8807W5-7 is 1.5W.
  • The minimum input voltage required for the AL8807W5-7 to operate is 5.5V. Operating the device below this voltage may cause instability or malfunction.
