A good PCB layout for the AL8843QSP-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R ceramic capacitor).
The AL8843QSP-13 is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a sufficient thermal margin.
Yes, the AL8843QSP-13 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended operating conditions and PCB layout guidelines to ensure reliable operation.
To calculate the power dissipation, use the formula: Pd = (Vin - Vout) x Iout. To estimate the junction temperature, use the thermal resistance (RθJA) and the power dissipation: Tj = Ta + (RθJA x Pd), where Ta is the ambient temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8843QSP-13 Overview

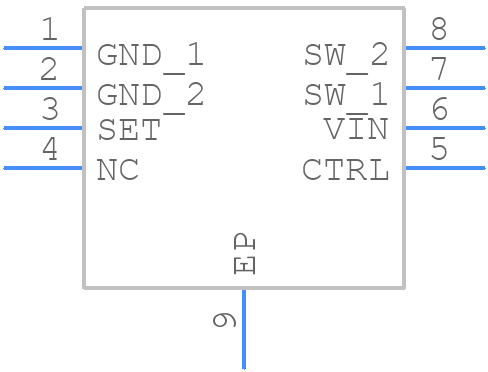

Use the download button to access the AL8843QSP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL884,
or try a keyword search, such as Display Drivers
