AL8843SP-13 - Diodes Incorporated

Description:  Wide Input Voltage Range: 4.5V to 40V  Output Current up to 3A  Internal 40V NDMOS Switch  Typical 4% Output Current Accuracy  Single Pin for On/Off and Brightness Control by DC Voltage or PWM Signal  Recommended Analog Dimming Range: 10% to 100%  Soft-Start  High Efficiency (Up to 97%)  LED Short Protection  Inherent Open-Circuit LED Protection  Over Temperature Protection (OTP)  Up to 1MHz Switching Frequency  SO-8EP Package Available in Green Molding Compound (No Br, Sb)  To

Download AL8843SP-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

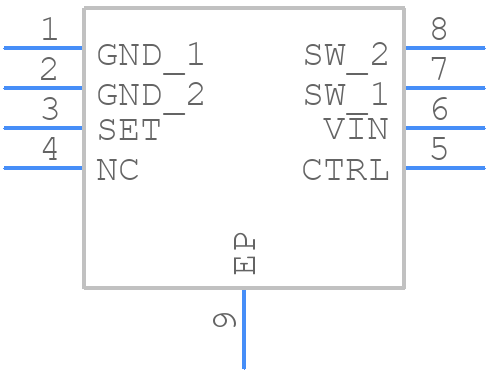

Symbol
AL8843SP-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AL8843SP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8EP
click to zoom
3D Models
AL8843SP-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-8EP
click to zoom

AL8843SP-13 Details

  • Manufacturer Part Number:

    AL8843SP-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

AL8843SP-13 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure the stability of the output voltage, it's recommended to use a minimum output capacitance of 10uF, and to place the capacitor as close to the output pin as possible. Additionally, using a low ESR capacitor can help to improve stability.
  • Although the datasheet specifies a maximum input voltage of 26V, it's recommended to limit the input voltage to 24V to ensure reliable operation and to prevent damage to the device.
  • To protect the device from overcurrent conditions, it's recommended to add an external current limiting resistor or a fuse in series with the input voltage. This helps to prevent damage to the device in case of an overcurrent condition.
  • A recommended input capacitor value is 1uF to 10uF, and a ceramic or X5R/X7R type capacitor is recommended due to its low ESR and high reliability.
