Diodes Incorporated provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, thermal vias, and copper pours. Additionally, it's essential to follow good PCB design practices, such as minimizing trace lengths and using a solid ground plane.
Proper thermal management is crucial for the AL8853AQS-13. Ensure good thermal conductivity by using a thermal pad or thermal tape on the exposed pad, and connect it to a solid copper ground plane. Also, consider using a heat sink or a thermal interface material (TIM) to further reduce thermal resistance.
The maximum allowed voltage on the EN pin is 6V. To protect it from overvoltage, use a voltage clamp or a zener diode to limit the voltage to within the recommended range. Additionally, consider adding a series resistor to limit the current and prevent damage from voltage spikes.
The AL8853AQS-13 has a built-in overcurrent protection (OCP) feature. To implement OCP, connect a sense resistor in series with the output, and then connect the sense resistor to the OCP pin. The OCP pin will pull low when the current exceeds the threshold, allowing you to implement a shutdown or warning mechanism.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The value depends on the input voltage and output current, but a typical value is 10uF to 22uF. Ensure the capacitor is rated for the maximum input voltage and has a low equivalent series resistance (ESR) to minimize voltage ripple.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8853AQS-13 Overview

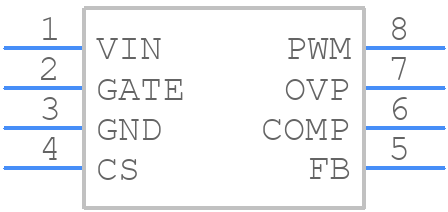

Use the download button to access the AL8853AQS-13 schematic symbol, PCB footprint, and 3D model.
