SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Voltage-Max:
40 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
16 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Pure Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
AL8860MP-13 Frequently Asked Questions (FAQs)
A good PCB layout for the AL8860MP-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated thermal layer is recommended.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, decoupling capacitors should be placed close to the IC, and the output voltage should be filtered with a capacitor and resistor in series.
The AL8860MP-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
While the AL8860MP-13 is a high-quality device, it's essential to consult with Diodes Incorporated's application engineers to determine its suitability for high-reliability or automotive applications. Additional testing and validation may be required to ensure the device meets the specific requirements of these applications.
To troubleshoot issues with the AL8860MP-13, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, component values, and decoupling. Use an oscilloscope to inspect the output voltage ripple and switching frequency. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8860MP-13 Overview

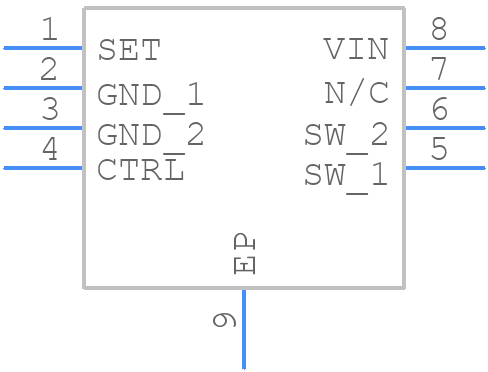

Use the download button to access the AL8860MP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL886,
or try a keyword search, such as Display Drivers
