AL8860QMP-13 - Diodes Incorporated

Description: LED Lighting Drivers LED MV Int Switch

Download AL8860QMP-13 Model

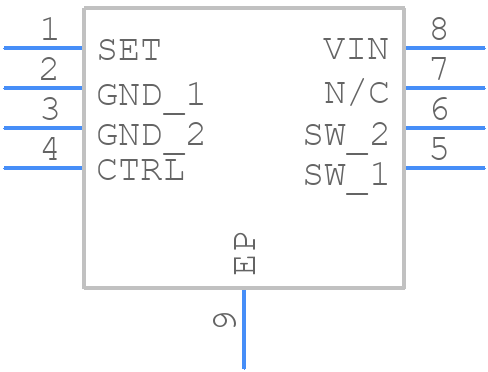

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AL8860QMP-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-8EP-
click to zoom
3D Models
AL8860QMP-13 - Diodes Incorporated  - 3D model - Small Outline Packages - MSOP-8EP-
click to zoom

AL8860QMP-13 Details

  • Manufacturer Part Number:

    AL8860QMP-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Diodes Incorporated

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

AL8860QMP-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AL8860QMP-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of high quality with low ESR.
  • The AL8860QMP-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
  • While it's technically possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance, efficiency, and stability. Using a different inductor may compromise the regulator's performance and reliability.
  • To troubleshoot output voltage deviations or instability, check the input voltage, output capacitor, and PCB layout. Ensure that the input voltage is within the recommended range, the output capacitor is of high quality, and the PCB layout follows the recommended guidelines. Also, verify that the component values and types match the recommended values.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AL8860QMP-13 Overview

Use the download button to access the AL8860QMP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL886, or try a keyword search, such as Display Drivers
