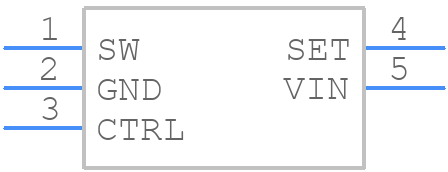

AL8860WT-7 - Diodes Incorporated

AL8860WT-7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the AL8860WT-7 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces near the device to minimize thermal resistance.
• How do I ensure stable output voltage regulation?
  To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and ESR (less than 1 ohm). Also, minimize the distance between the output capacitor and the device.
• What is the maximum safe operating junction temperature?
  The maximum safe operating junction temperature for the AL8860WT-7 is 150°C. Exceeding this temperature may reduce the device's lifespan or cause permanent damage.
• Can I use the AL8860WT-7 in a high-reliability or automotive application?
  While the AL8860WT-7 is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. Check the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation to ensure compliance with your specific application's requirements.
• How do I troubleshoot output voltage deviations or oscillations?
  To troubleshoot output voltage deviations or oscillations, check the input voltage, output capacitor value and ESR, and the PCB layout for any signs of noise or interference. Ensure that the device is properly decoupled and that the output capacitor is of sufficient value and quality.
