A good PCB layout for the AL8861MP-13 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper coverage around the device. Avoid routing high-current traces under the device, and use thermal vias to dissipate heat efficiently.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and low ESR. Also, minimize the distance between the output capacitor and the device, and use a low-impedance output capacitor to reduce output voltage ripple.
The AL8861MP-13 is rated for operation up to 125°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 105°C to ensure the device operates within its specified parameters.
Yes, the AL8861MP-13 is suitable for high-reliability applications. It's built with a robust design, and Diodes Incorporated has implemented various quality control measures to ensure the device meets stringent reliability standards.
The AL8861MP-13 has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. However, it's still important to implement external protection measures, such as fuses or PTC resistors, to prevent catastrophic failures. Also, ensure good thermal design and heat sinking to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8861MP-13 Overview

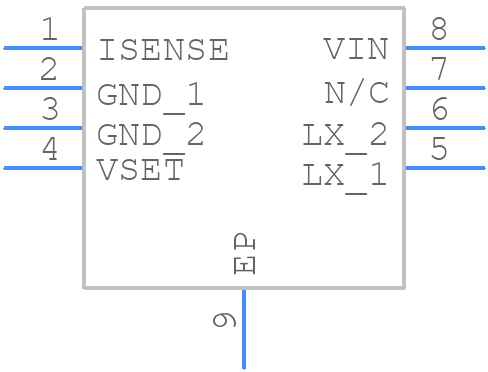

Use the download button to access the AL8861MP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL886,
or try a keyword search, such as Display Drivers
