A good PCB layout for the AL8862QSP-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and the output capacitor is of high quality and sufficient capacitance.
The AL8862QSP-13 is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure a sufficient margin for thermal derating.
While it's technically possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance, efficiency, and stability. Using a different inductor may compromise the regulator's performance and reliability.
To troubleshoot output voltage deviations or oscillations, check the PCB layout for any signs of noise coupling or electromagnetic interference. Verify that the input voltage is within the recommended range, and the output capacitor is of high quality and sufficient capacitance. Also, ensure that the feedback loop is properly connected and the compensation components are correctly selected.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AL8862QSP-13 Overview

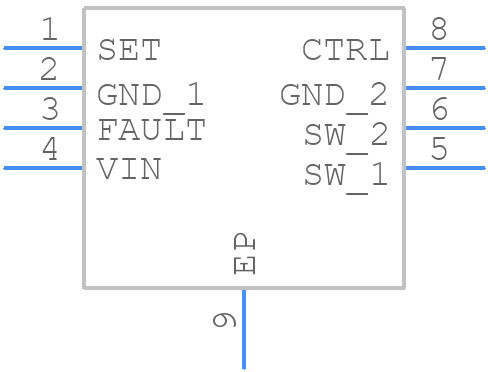

Use the download button to access the AL8862QSP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AL886,
or try a keyword search, such as Display Drivers
