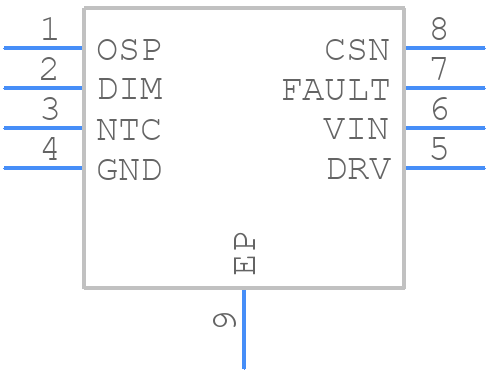

AL8863SP-13 - Diodes Incorporated

AL8863SP-13 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the AL8863SP-13 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
• How do I ensure stable output voltage regulation?
  To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, as well as the suggested PCB layout. Additionally, ensure that the input voltage is within the recommended range, and the output current is within the specified maximum rating.
• What is the maximum ambient temperature for reliable operation?
  The AL8863SP-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
• Can I use the AL8863SP-13 in a high-reliability or automotive application?
  While the AL8863SP-13 is a high-quality device, it's essential to consult with Diodes Incorporated or a qualified representative to determine its suitability for high-reliability or automotive applications, as additional testing and validation may be required.
• What is the recommended input capacitor type and value?
  A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ensure stable operation.
