ALAN110001-3J61DT - ABRACON

Description: Audio Transformers / Signal Transformers 10/100/1000BASE-T LAN XFMR POE

Download ALAN110001-3J61DT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

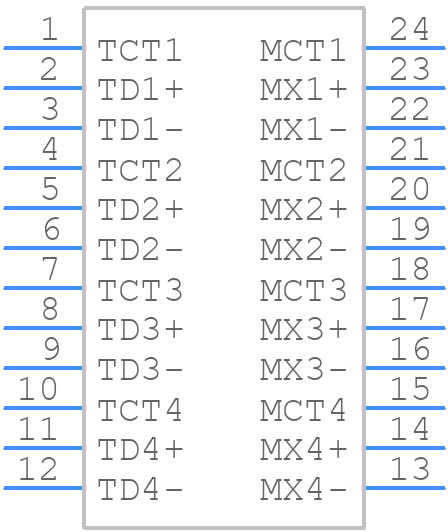

ALAN110001-3J61DT - ABRACON - PCB symbol
click to zoom
PCB Footprints

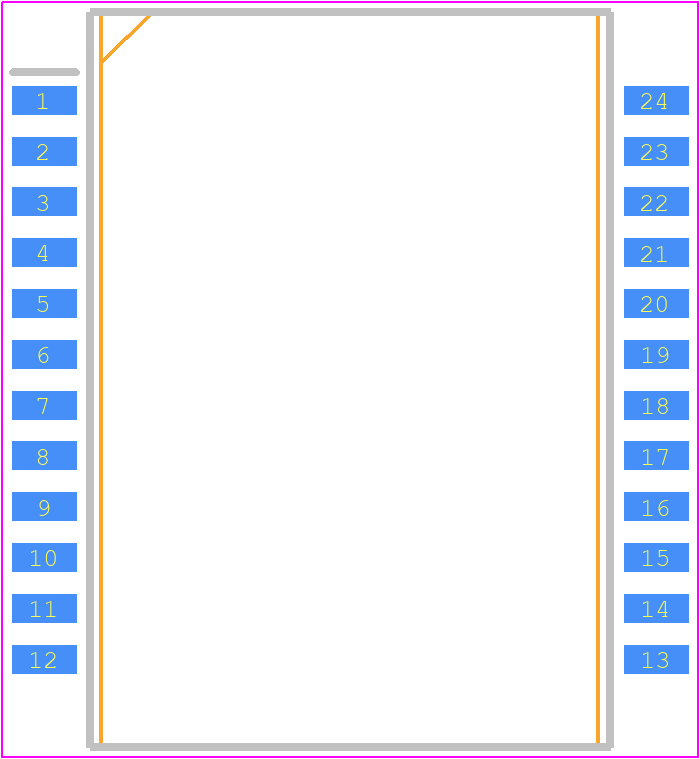

ALAN110001-3J61DT - ABRACON PCB footprint - Small Outline Packages - Small Outline Packages - 24-pin Option 1
click to zoom
3D Models
ALAN110001-3J61DT - ABRACON - 3D model - Small Outline Packages - 24-pin Option 1
click to zoom

ALAN110001-3J61DT Details

  • Manufacturer Part Number:

    ALAN110001-3J61DT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    8.25

  • Application:

    10/100/1000 BASE-T

  • Height:

    6.2 mm

  • Isolation Voltage:

    1500 V

  • Length:

    18.38 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT

  • Width:

    12.44 mm

ALAN110001-3J61DT Frequently Asked Questions (FAQs)

  • Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • Yes, the ALAN110001-3J61DT is designed to withstand high-vibration environments. Abracon's proprietary packaging technology ensures that the device can operate reliably in applications with vibration levels up to 20G.
  • To prevent damage, handle the ALAN110001-3J61DT by the package body only, avoiding touching the pins or electrical components. Use anti-static wrist straps, mats, or packaging materials to prevent electrostatic discharge (ESD) damage.
  • The ALAN110001-3J61DT is rated for operation from -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
  • Yes, the ALAN110001-3J61DT is designed to operate in humid environments. Abracon's packaging technology ensures that the device can withstand relative humidity levels up to 95% without compromising performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ALAN110001-3J61DT Overview

Use the download button to access the ALAN110001-3J61DT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALAN1, or try a keyword search, such as Pulse/Datacom Transformers
