Abracon recommends a symmetrical PCB layout with a solid ground plane, minimal signal trace length, and a decoupling capacitor (e.g., 10nF) between VCC and GND to ensure optimal performance and minimize noise.
The ALAN310001-3J61DT has a typical start-up time of 2-5ms. To ensure stability, allow the oscillator to stabilize for at least 10ms before using the clock signal. You can also add a power-on reset circuit to ensure a clean start-up sequence.
The ALAN310001-3J61DT is rated for operation from -40°C to +85°C. However, it's essential to note that the oscillator's frequency stability and accuracy may degrade at extreme temperatures.
While the ALAN310001-3J61DT is designed to be rugged, it's still a sensitive electronic component. Abracon recommends following proper mounting and soldering techniques to ensure the oscillator's reliability in high-vibration or high-shock environments.
To troubleshoot issues, check the power supply voltage, ensure proper PCB layout and decoupling, verify the oscillator's pin connections, and use an oscilloscope to measure the clock signal. If issues persist, consult Abracon's application notes or contact their technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALAN310001-3J61DT Overview

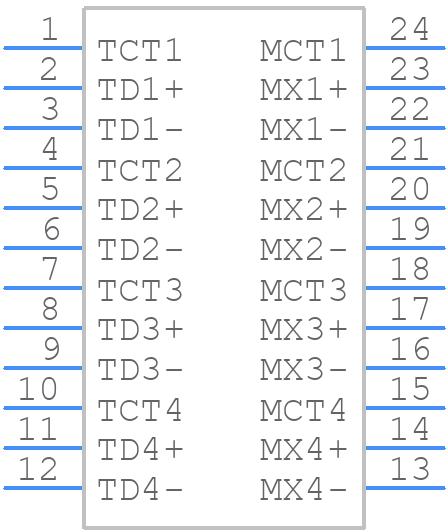

Use the download button to access the ALAN310001-3J61DT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ALAN3,
or try a keyword search, such as Pulse/Datacom Transformers
