ALANS10001-3J61ET footprint, schematic symbol and 3D model by ABRACON

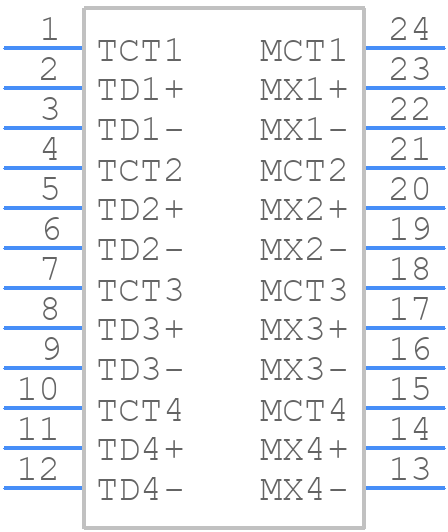

Symbol

click to zoom

PCB Footprints

ALANS10001-3J61ET - ABRACON PCB footprint - Other - Other - ALANS10001-3J61ET-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ALANS10001-3J61ET
Part Number ALANS10001-3J61ET
Manufacturer ABRACON
Pin Count 24
Part Category Transformer
Package Category Other
Footprint Name Other - ALANS10001-3J61ET-1
Released Date Jul 22, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ALANS10001-3J61ET Details

Manufacturer Part Number:
ALANS10001-3J61ET
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
12 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.25
Additional Feature:
HEIGHT DIM INCLUDE TERMINAL ALSO
Application:
10/100/1000 BASE-T
Height:
6.8 mm
Isolation Voltage:
2500 V
Length:
18.1 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
4
Operating Temperature-Max:
70 °C
Packing Method:
TR, 13 INCH
Primary Inductance:
350 µH
Surface Mount:
YES
Transformer Type:
DATACOM TRANSFORMER
Turns Ratio (Np:Ns):
1CT:1CT
Width:
12.2 mm

ALANS10001-3J61ET Frequently Asked Questions (FAQs)

Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
The ALANS10001-3J61ET is designed to minimize EMI and RFI through the use of internal shielding, and Abracon recommends following proper PCB design and layout practices to further reduce EMI and RFI.
The operating temperature range for the ALANS10001-3J61ET is -40°C to +85°C, as specified in the datasheet.
Yes, the ALANS10001-3J61ET is designed to withstand high-vibration environments, but Abracon recommends following proper mounting and installation procedures to ensure reliable operation.
Abracon recommends using a 10uF to 22uF decoupling capacitor with a 0.1uF to 1uF bypass capacitor for optimal power supply decoupling.
