ALANS10002-6NA1DT - ABRACON

Description: Audio Transformers / Signal Transformers DUAL 10/100/1000 48 pin -40C +85C

Download ALANS10002-6NA1DT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

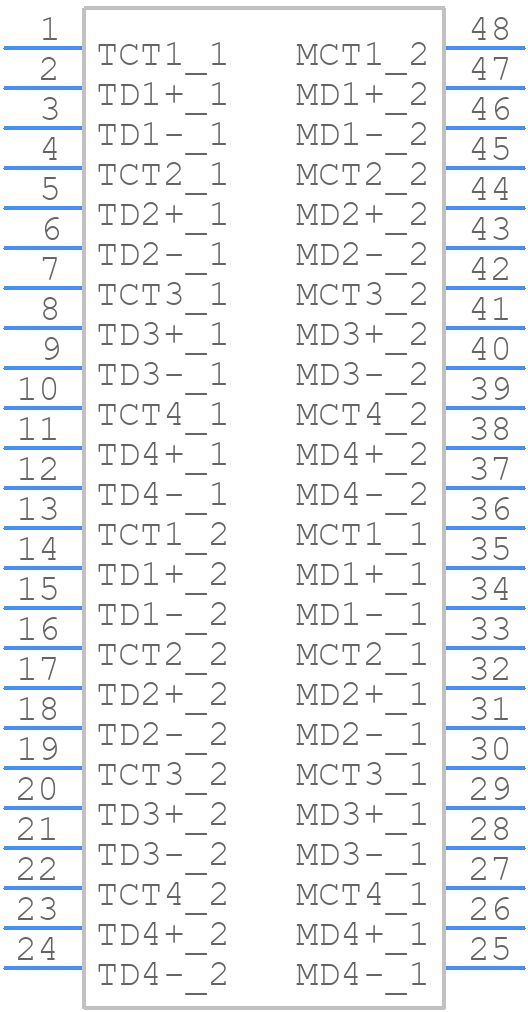

ALANS10002-6NA1DT - ABRACON - PCB symbol
click to zoom
PCB Footprints
ALANS10002-6NA1DT - ABRACON PCB footprint - Other - Other - ALANS10002-6NA1DT-4
click to zoom
3D Models
ALANS10002-6NA1DT - ABRACON - 3D model - Other - ALANS10002-6NA1DT-4
click to zoom

ALANS10002-6NA1DT Details

  • Manufacturer Part Number:

    ALANS10002-6NA1DT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7.48

  • Application:

    LAN; 10/100/1000 BASE-T; ETHERNET

  • Height:

    6.99 mm

  • Isolation Voltage:

    2500 V

  • Length:

    27.81 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 13 INCH

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT

  • Width:

    12.19 mm
