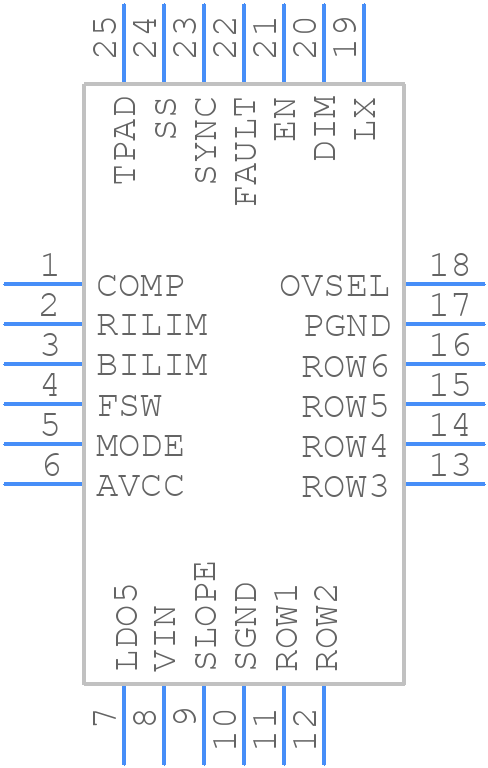

ALED7707TR - STMicroelectronics

ALED7707TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ALED7707TR to ensure optimal thermal performance?
  A good PCB layout for the ALED7707TR should include a large copper area for heat dissipation, with multiple vias connecting the top and bottom layers to the thermal pad. The device should be placed near a thermal interface material (TIM) to improve heat transfer.
• How do I choose the right external components for the ALED7707TR, such as the inductor and capacitors?
  The choice of external components depends on the specific application and design requirements. For the inductor, consider the inductance value, DC resistance, and saturation current. For capacitors, consider the capacitance value, voltage rating, and ESR. Consult the datasheet and application notes for guidance on component selection.
• What are the key considerations for EMI filtering and shielding when using the ALED7707TR?
  To minimize EMI, use a shielded layout, keep sensitive traces away from the switching node, and add EMI filters such as common-mode chokes and capacitors. Ensure the PCB layout is symmetrical and balanced to reduce radiation.
• How do I implement overcurrent protection and short-circuit protection with the ALED7707TR?
  The ALED7707TR has a built-in overcurrent protection feature. To implement short-circuit protection, use an external sense resistor and a comparator to detect overcurrent conditions. The device can be configured to latch off or auto-retry in case of a fault.
• What are the thermal management considerations for the ALED7707TR, and how do I prevent overheating?
  Ensure good airflow around the device, use a heat sink if necessary, and implement thermal monitoring and shutdown features. The device has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C.
