ALED8102SXT - STMicroelectronics

Description: Automotive 8-channel LED driver with direct switch control

Download ALED8102SXT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

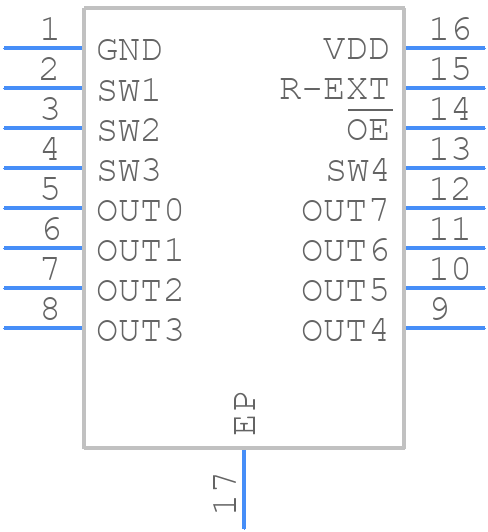

ALED8102SXT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ALED8102SXT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-16
click to zoom
3D Models
ALED8102SXT - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP-16
click to zoom

ALED8102SXT Details

  • Manufacturer Part Number:

    ALED8102SXT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn) - immersion

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ALED8102SXT Overview

Use the download button to access the ALED8102SXT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALED8, or try a keyword search, such as Display Drivers
