ALF1P05 - Panasonic

Description: General Purpose Relays 1 Form A 5VDC PCB type

Download ALF1P05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALF1P05 - Panasonic - PCB symbol
click to zoom
PCB Footprints

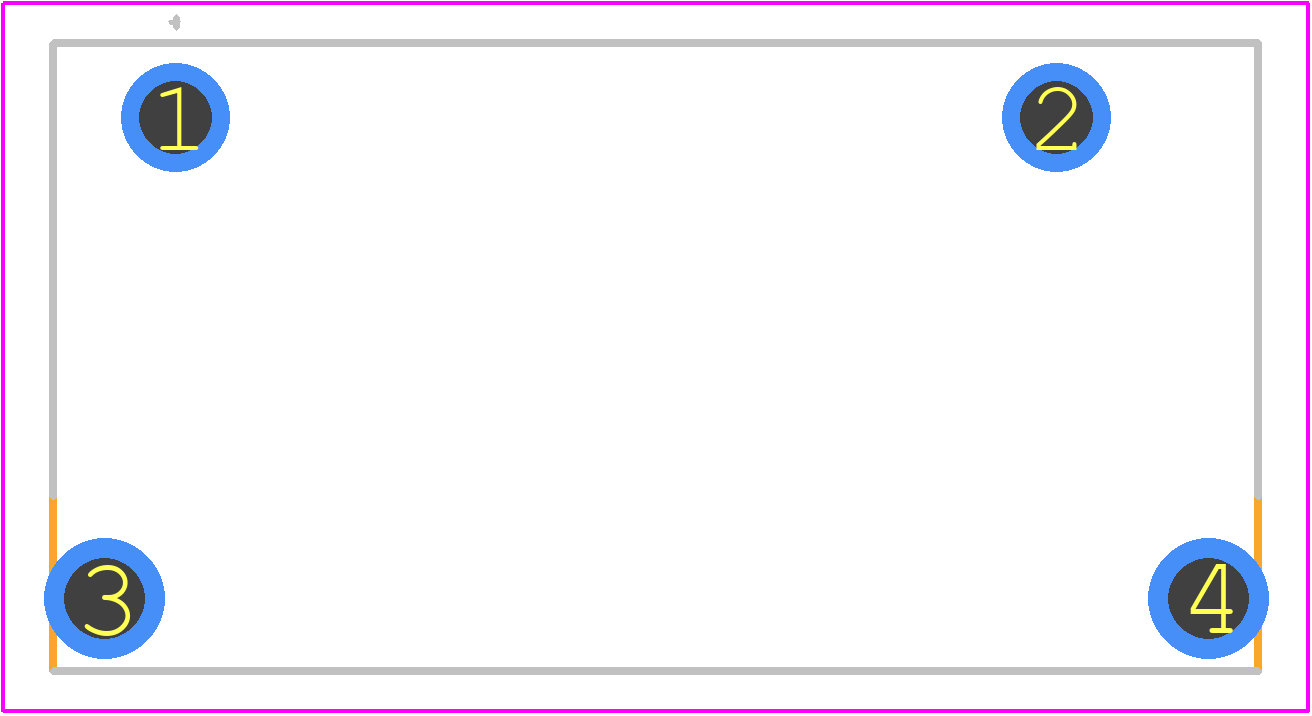

ALF1P05 - Panasonic PCB footprint - Other - Other - ALF1P05-2
click to zoom
3D Models
ALF1P05 - Panasonic - 3D model - Other - ALF1P05-2
click to zoom

ALF1P05 Details

  • Manufacturer Part Number:

    ALF1P05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.7

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.18 A

  • Coil Operate Voltage(DC):

    3.5 V

  • Coil Power:

    900 mW

  • Coil Release Voltage(DC):

    0.5 V

  • Coil Resistance:

    27.8 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    25A@250VAC

  • Contact Current(AC)-Max:

    25 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ALF1P05 Frequently Asked Questions (FAQs)

  • The recommended land pattern for ALF1P05 is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm.
  • To handle thermal considerations for ALF1P05, ensure good thermal conduction by using a thermal pad or a heat sink, and avoid overheating by keeping the operating temperature within the recommended range of -40°C to 125°C.
  • The maximum allowable voltage for ALF1P05 is 50V, but it's recommended to operate within the recommended voltage range of 3.3V to 5.5V for optimal performance and reliability.
  • Yes, ALF1P05 is suitable for high-frequency applications up to 100MHz, but ensure proper PCB design and layout to minimize signal loss and noise.
  • To ensure the reliability of ALF1P05 in a humid environment, apply a conformal coating to protect the device from moisture, and follow proper storage and handling procedures to prevent moisture absorption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ALF1P05 Overview

Use the download button to access the ALF1P05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALF1P, or try a keyword search, such as Power/Signal Relays
