A good PCB layout for ALF1P09 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow Panasonic's recommended derating guidelines for the device. This includes reducing the operating voltage and current as the temperature increases. Additionally, using a heat sink or thermal pad can help to dissipate heat and reduce the junction temperature.
The maximum allowable power dissipation for ALF1P09 is 1.5W. However, this value can be affected by the operating temperature, PCB layout, and other factors. It's essential to perform thermal analysis and simulation to ensure that the device operates within its safe operating area.
Yes, ALF1P09 can be used in a switching regulator application. However, it's essential to ensure that the device is operated within its safe operating area, and that the switching frequency is within the recommended range. Additionally, proper layout and decoupling are crucial to minimize electromagnetic interference (EMI) and ensure reliable operation.
To troubleshoot issues with ALF1P09, start by checking the PCB layout and ensuring that it meets the recommended guidelines. Verify that the input and output voltages are within the specified range, and that the device is not overheating. Use a thermal camera or thermometer to measure the junction temperature, and check for any signs of physical damage or contamination. If the issue persists, consult Panasonic's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALF1P09 Overview

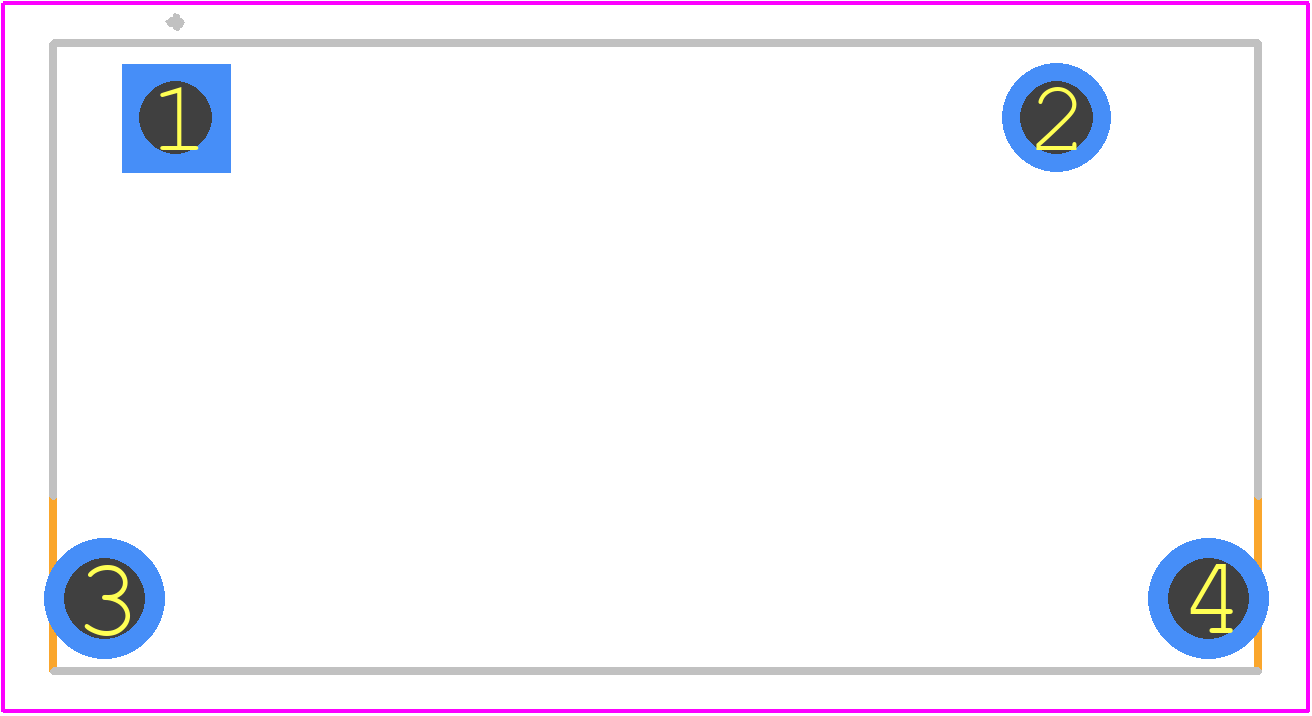

Use the download button to access the ALF1P09 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALF1P,
or try a keyword search, such as Other Relays
