A good PCB layout for the ALF1P18 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage and current ratings in the datasheet. Typically, a voltage regulator or a voltage reference is required to provide a stable voltage supply to the ALF1P18. Additionally, ensure that the input and output impedance matching is done correctly to prevent signal reflections and distortion.
The maximum operating temperature range for the ALF1P18 is typically between -40°C to 85°C. However, it's recommended to check the specific datasheet or consult with Panasonic's technical support for the exact temperature range, as it may vary depending on the specific package and application.
To handle ESD protection for the ALF1P18, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Additionally, ensure that the PCB design includes ESD protection features such as guard rings and ESD-safe handling procedures during manufacturing and assembly.
The recommended storage and handling procedure for the ALF1P18 involves storing the devices in their original packaging, away from direct sunlight and moisture. Handle the devices with ESD-safe materials and tools, and avoid bending or flexing the leads. It's also recommended to follow the JEDEC standard for handling and storage of semiconductor devices.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALF1P18 Overview

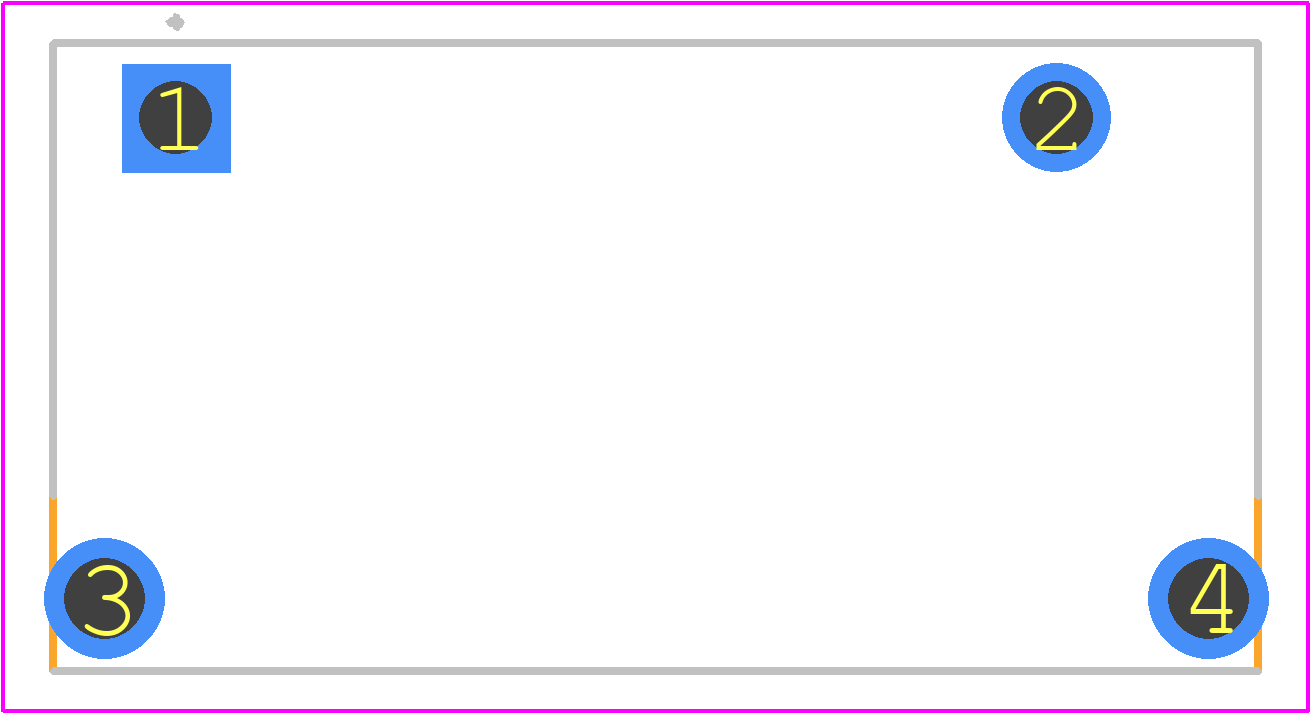

Use the download button to access the ALF1P18 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALF1P,
or try a keyword search, such as Power/Signal Relays
