A good PCB layout for the ALF1T05 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the ALF1T05 operates within the specified temperature range, provide adequate heat dissipation, use a heat sink if necessary, and avoid exposing the device to extreme temperatures during storage or operation.
The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic capacitor, such as X5R or X7R, to minimize voltage ripple and ensure stable operation.
While the ALF1T05 is a robust device, it's still susceptible to vibration-induced failures. To ensure reliability in high-vibration environments, consider using a vibration-resistant capacitor, securing the device with a screw or adhesive, and using a PCB with a rigid construction.
To troubleshoot common issues, check the input voltage, output load, and PCB layout. Verify that the input capacitor is properly sized and placed, and ensure the device is not overheating due to excessive current or poor heat dissipation. Consult the datasheet and application notes for more guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALF1T05 Overview

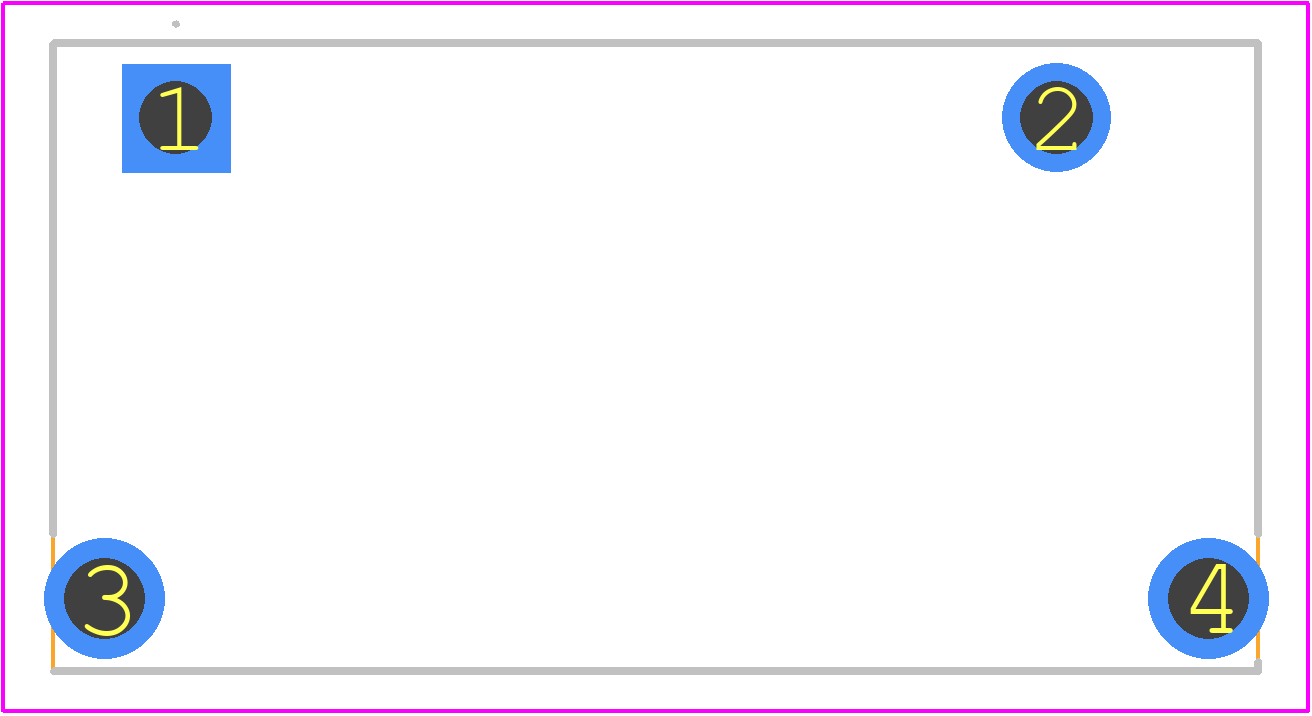

Use the download button to access the ALF1T05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALF1T,
or try a keyword search, such as Power/Signal Relays
