ALF1T06 - Panasonic

Description: Ideal for compressor and inverter loads, 1 Form A 20 A, Power relays

Download ALF1T06 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALF1T06 - Panasonic - PCB symbol
click to zoom
PCB Footprints

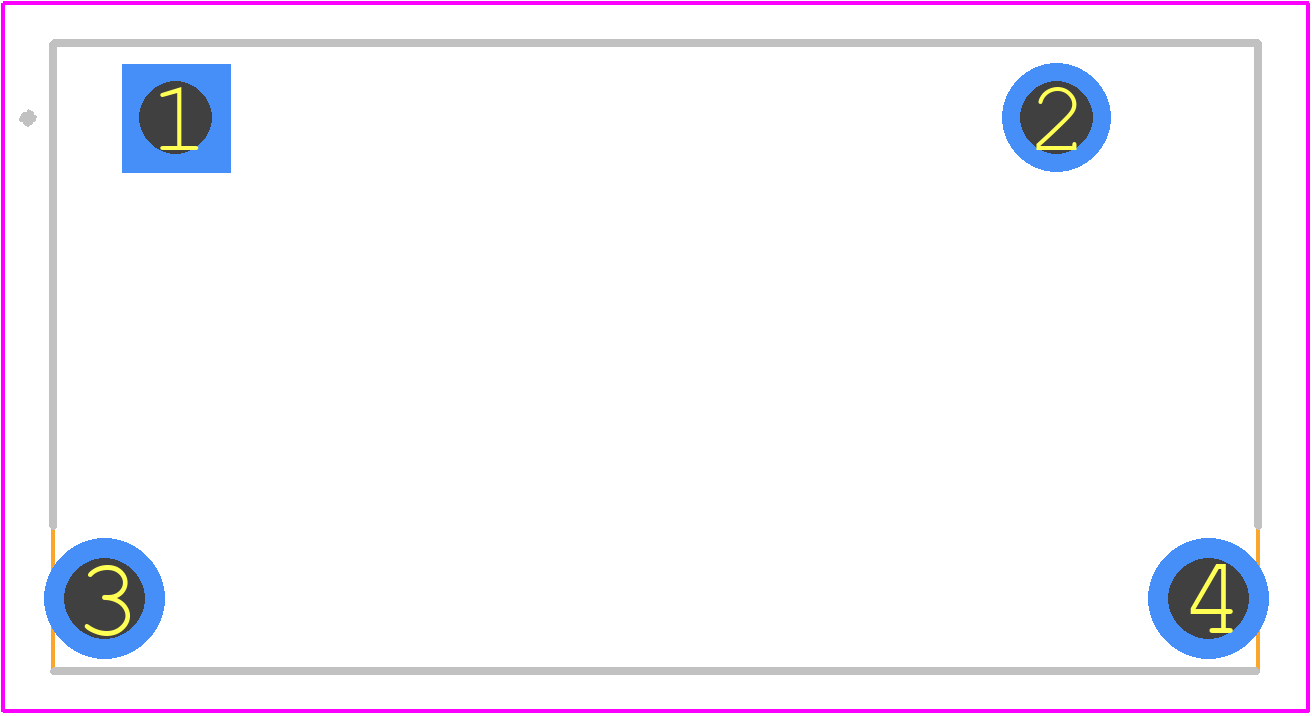

ALF1T06 - Panasonic PCB footprint - Other - Other - ALF1T
click to zoom
3D Models
ALF1T06 - Panasonic - 3D model - Other - ALF1T
click to zoom

ALF1T06 Details

  • Manufacturer Part Number:

    ALF1T06

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.7

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.15 A

  • Coil Operate Voltage(DC):

    4.2 V

  • Coil Power:

    900 mW

  • Coil Release Voltage(DC):

    0.6 V

  • Coil Resistance:

    40 Ω

  • Coil Voltage(DC)-Max:

    6 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    25A@250VAC

  • Contact Current(AC)-Max:

    25 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
