ALF1T09 - Panasonic

ALF1T09 Details

• Manufacturer Part Number:

  ALF1T09

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  5.7

• Body Breadth:

  15.7 mm

• Body Height:

  23.3 mm

• Body Length or Diameter:

  30.1 mm

• Coil Current(DC)-Max:

  0.1 A

• Coil Operate Voltage(DC):

  6.3 V

• Coil Power:

  900 mW

• Coil Release Voltage(DC):

  0.9 V

• Coil Resistance:

  90 Ω

• Coil Voltage(DC)-Max:

  9 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  25A@250VAC

• Contact Current(AC)-Max:

  25 A

• Contact Voltage(AC)-Max:

  250 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  100000 Cycle(s)

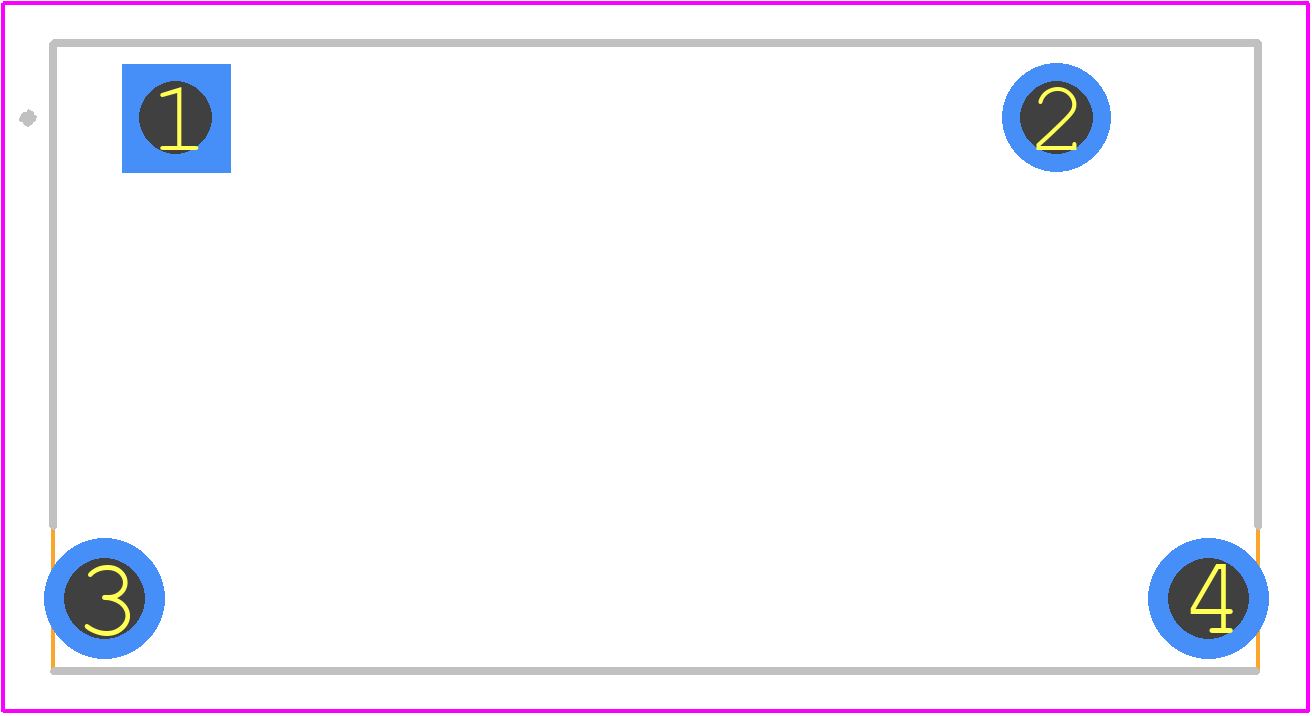

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operate Time:

  20 ms

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  30.1mm x 15.7mm x 23.3mm

• Reference Standard:

  TUV; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  15 ms

• Surface Mount:

  NO

• Termination Type:

  SOLDER
