ALF1T12 - Panasonic

Description: General Purpose Relays 20A 12VDC SPST 900MW TOP MOUNT PLUG-IN

Download ALF1T12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALF1T12 - Panasonic - PCB symbol
click to zoom
PCB Footprints

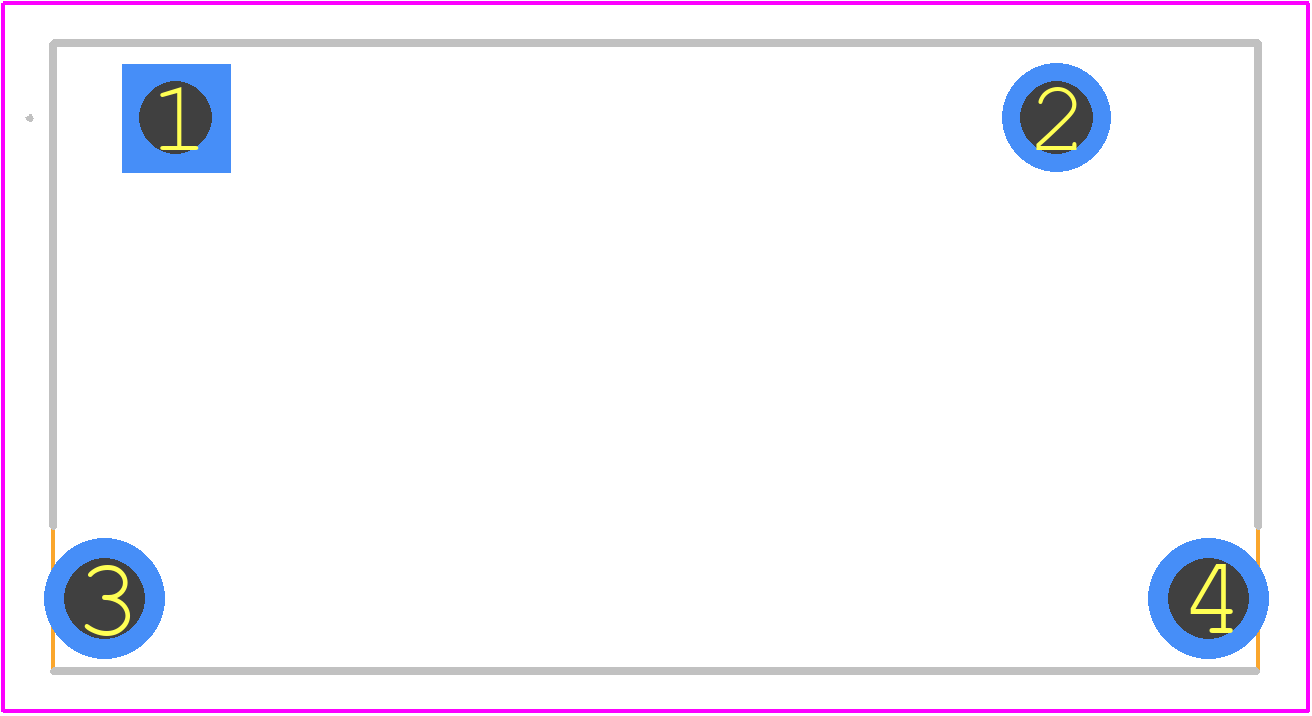

ALF1T12 - Panasonic PCB footprint - Other - Other - ALF1T12-2
click to zoom
3D Models
ALF1T12 - Panasonic - 3D model - Other - ALF1T12-2
click to zoom

ALF1T12 Details

  • Manufacturer Part Number:

    ALF1T12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.7

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.075 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    900 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    160 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    25A@250VAC

  • Contact Current(AC)-Max:

    25 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    TUV; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    15 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ALF1T12 Frequently Asked Questions (FAQs)

  • The recommended land pattern for ALF1T12 is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm.
  • To handle thermal considerations for ALF1T12, ensure good thermal conduction by using a thermal pad or a heat sink, and keep the ambient temperature within the recommended operating range of -40°C to 125°C.
  • The maximum allowable voltage for ALF1T12 is 50V, but it's recommended to operate within the rated voltage of 12V to ensure reliable performance and longevity.
  • Yes, ALF1T12 is suitable for high-frequency applications up to 100MHz, but it's essential to consider the component's self-resonant frequency and impedance characteristics to ensure optimal performance.
  • To ensure the reliability of ALF1T12 in harsh environments, follow proper storage and handling procedures, and consider using conformal coating or potting to protect the component from moisture and contaminants.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ALF1T12 Overview

Use the download button to access the ALF1T12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALF1T, or try a keyword search, such as Power/Signal Relays
