The recommended land pattern for the ALF1T24 is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm. The land pattern should be designed to accommodate the component's dimensions and thermal considerations.
The ALF1T24 has a high power density, so thermal management is crucial. Ensure good airflow around the component, use a heat sink if necessary, and design the PCB to dissipate heat efficiently. The thermal resistance of the component is 10°C/W, so a thermal interface material with a thermal conductivity of at least 1 W/mK is recommended.
The maximum operating temperature range for the ALF1T24 is -40°C to 150°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the component within a temperature range of -20°C to 125°C for optimal performance.
To ensure the reliability of the ALF1T24 in high-vibration environments, use a robust mounting method, such as a screw-down or adhesive mounting. Ensure the PCB is designed to withstand vibrations, and consider using a vibration-dampening material or a shock-absorbing mount. Additionally, follow Panasonic's recommended soldering and assembly guidelines to minimize the risk of mechanical stress.
The ALF1T24 has an ESD rating of 2 kV human body model (HBM) and 150 V machine model (MM). To ensure ESD protection, handle the component in an ESD-controlled environment, use ESD-protective packaging, and follow proper ESD-handling procedures during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALF1T24 Overview

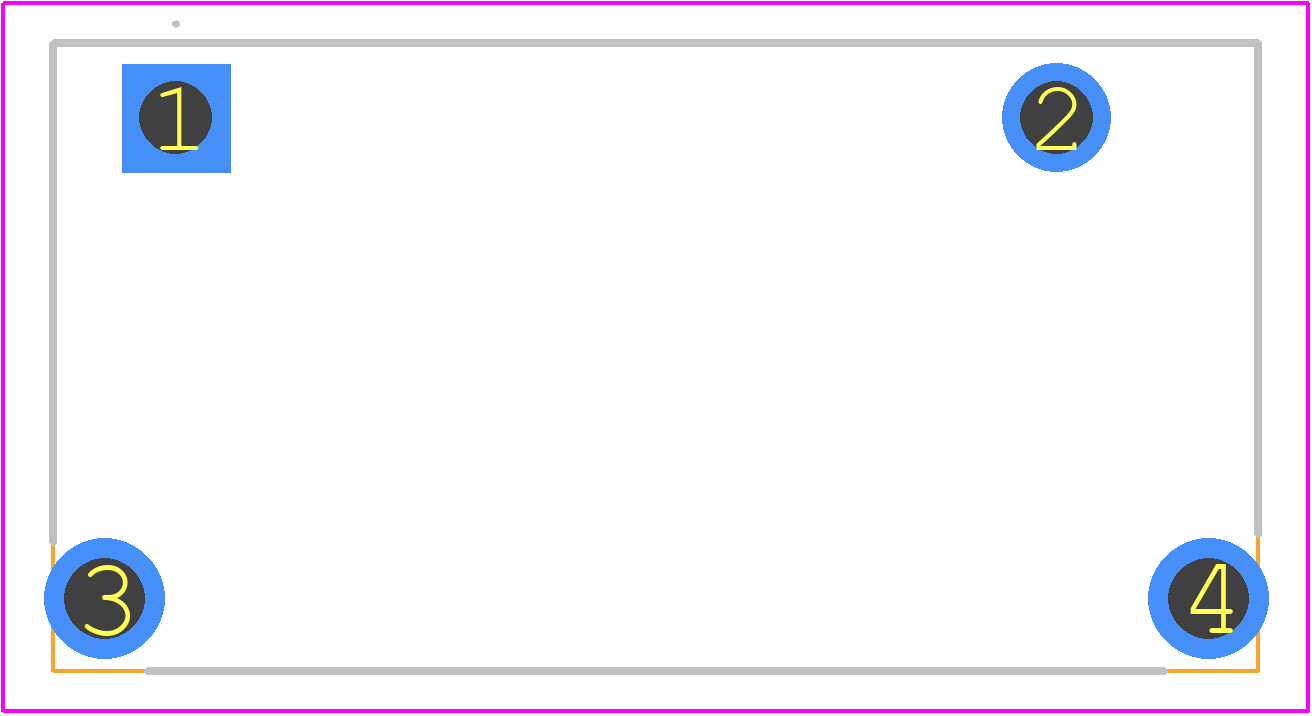

Use the download button to access the ALF1T24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALF1T,
or try a keyword search, such as Other Relays
