ALFG1PF12 - Panasonic

Description: PCB RELAY, 22A, 1NO, 12Vdc coil

Download ALFG1PF12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALFG1PF12 - Panasonic - PCB symbol
click to zoom

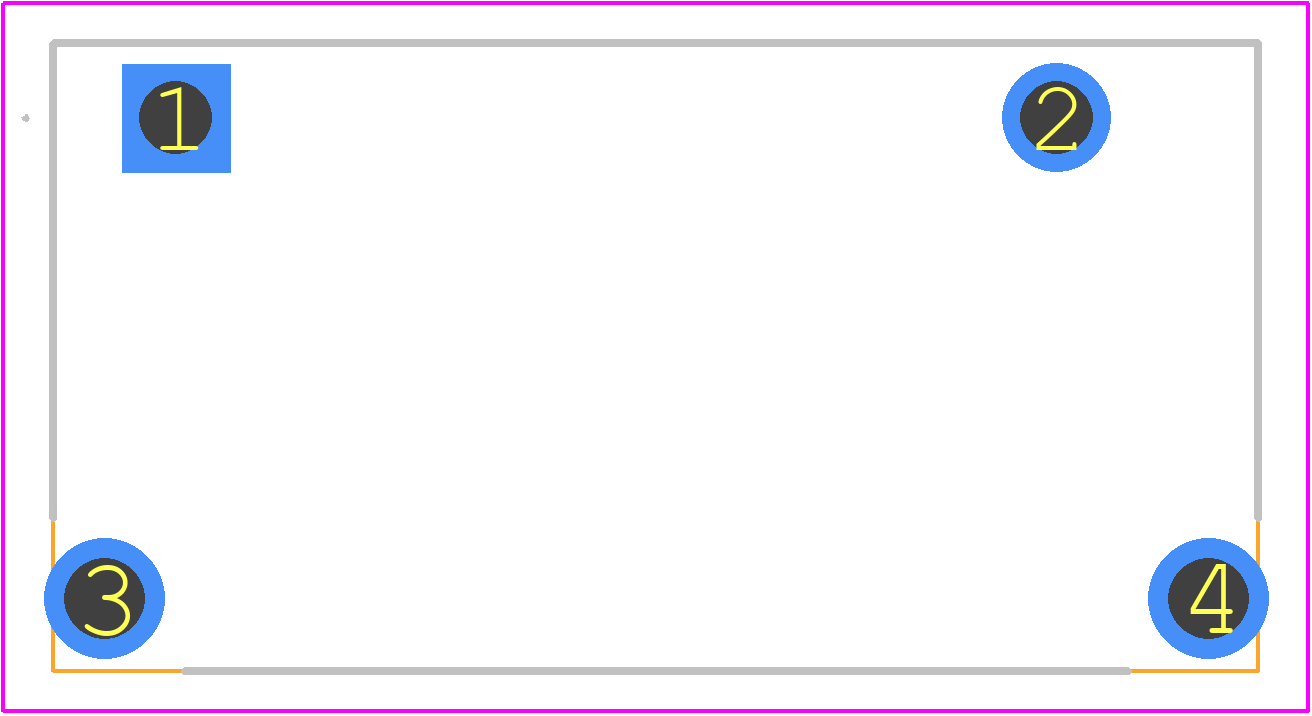

PCB Footprints
ALFG1PF12 - Panasonic PCB footprint - Other - Other - ALFG1PF12-1
click to zoom
3D Models
ALFG1PF12 - Panasonic - 3D model - Other - ALFG1PF12-1
click to zoom

ALFG1PF12 Details

  • Manufacturer Part Number:

    ALFG1PF12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.5

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.117 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    103 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    22A@250VAC

  • Contact Current(AC)-Max:

    22 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    30000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
